QT60168-ASG - Microchip

Description: QT60168-ASG, Touch Screen Controller, 32-Pin TQFP

Download QT60168-ASG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

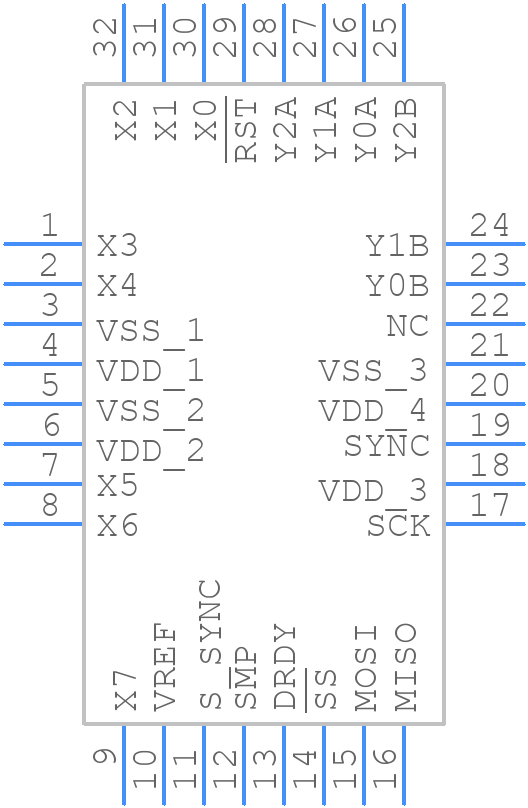

Symbol
QT60168-ASG - Microchip - PCB symbol
click to zoom
PCB Footprints
QT60168-ASG - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - QT60168-ASG_A
click to zoom
3D Models
QT60168-ASG - Microchip - 3D model - Quad Flat Packages - QT60168-ASG_A
click to zoom

QT60168-ASG Details

  • Manufacturer Part Number:

    QT60168-ASG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    TQFP-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    7 mm

  • Body Height:

    1.05 mm

  • Body Length or Diameter:

    7 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.60-4.30V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

QT60168-ASG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a metal shield around the QT60168-ASG, and ensure that the PCB layout is designed to minimize radiation. Also, use a common mode choke and a ferrite bead to filter the power supply lines.
  • The QT60168-ASG can operate from -40°C to +85°C, but the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Use a logic analyzer or an oscilloscope to monitor the signals and identify the issue. Check the power supply, clock signals, and data lines for any anomalies. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the QT60168-ASG is suitable for battery-powered devices. However, ensure that the power consumption is optimized, and the device is designed to minimize power consumption during idle modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QT60168-ASG Overview

Use the download button to access the QT60168-ASG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QT601, or try a keyword search, such as Other Sensors/Transducers
