QT60240-ISG - Microchip

Description: QT60240-ISG, Q Matrix Touch Screen Controller, 10 bit Serial-I2C, 32-Pin MLF

Download QT60240-ISG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

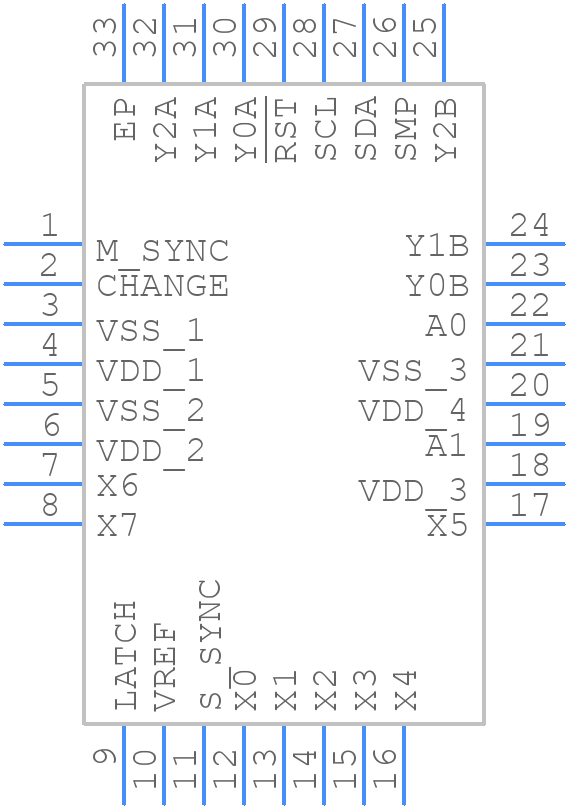

QT60240-ISG - Microchip - PCB symbol
click to zoom
PCB Footprints
QT60240-ISG - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MLF-32
click to zoom
3D Models
QT60240-ISG - Microchip - 3D model - Quad Flat No-Lead - MLF-32
click to zoom

QT60240-ISG Details

  • Manufacturer Part Number:

    QT60240-ISG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MLF-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Body Breadth:

    5 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    5 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.20-4.20V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TOUCH SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

QT60240-ISG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the QT60240-ISG involves placing the device near the touch sensor electrodes, using a solid ground plane, and minimizing the distance between the device and the electrodes. A 4-layer PCB with a dedicated ground plane is recommended.
  • Calibration involves adjusting the sensitivity and threshold settings to optimize the device's performance for the specific touch sensor design. This can be done using the QT60240-ISG's built-in calibration routine or through external calibration using a microcontroller.
  • The QT60240-ISG can support up to 40 touch sensors, depending on the specific configuration and application requirements.
  • The QT60240-ISG has built-in noise filtering and interference rejection capabilities, including automatic gain control and adaptive thresholding. Additionally, the device can be configured to use external noise filtering components for added robustness.
  • The power consumption of the QT60240-ISG depends on the specific operating mode and configuration. In typical operating conditions, the device consumes around 10-20 mA of current, with a maximum current consumption of 50 mA during calibration.
