QT60248-ASG - Microchip

Description: QT60248-ASG, Touch Screen Controller, 32-Pin TQFP

Download QT60248-ASG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

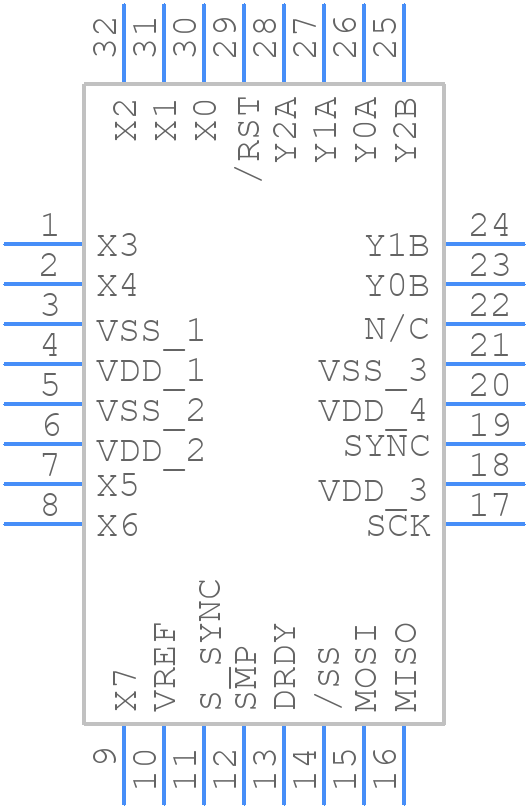

QT60248-ASG - Microchip - PCB symbol
click to zoom
PCB Footprints
QT60248-ASG - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 32 pin TQFP
click to zoom
3D Models
QT60248-ASG - Microchip - 3D model - Quad Flat Packages - 32 pin TQFP
click to zoom

QT60248-ASG Details

  • Manufacturer Part Number:

    QT60248-ASG

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-32

  • Manufacturer:

    Microchip Technology Inc

  • Body Breadth:

    7 mm

  • Body Height:

    1.05 mm

  • Body Length or Diameter:

    7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.60-4.30V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CAPACITIVE TOUCH SENSOR

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

QT60248-ASG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the SCL line and a pull-down resistor on the SDA line.
  • The maximum capacitance that can be connected to the touch sensor pins is 100nF. Exceeding this value may affect the touch sensor's performance and accuracy.
  • Calibration involves adjusting the sensor's sensitivity and threshold settings. Use the QT60248-ASG's built-in calibration routine or a third-party calibration tool to optimize the sensor's performance for your specific application.
  • Power up the QT60248-ASG in the following sequence: VDD, VDDIO, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
