QT60326-ASG - Microchip

Description: QT60326-ASG, Touch Screen Controller, 44-Pin TQFP

Download QT60326-ASG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

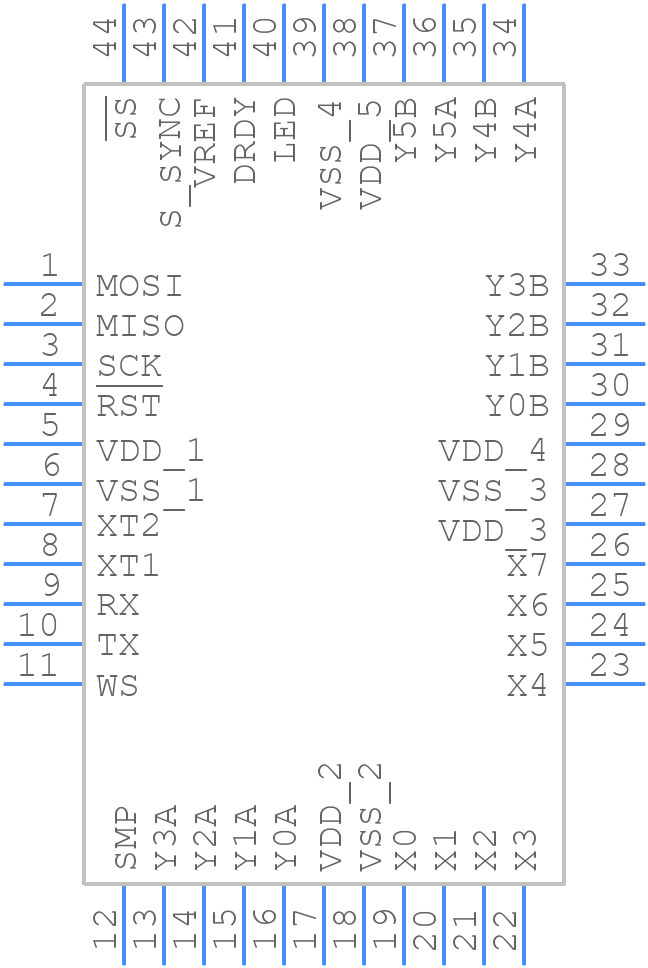

QT60326-ASG - Microchip - PCB symbol
click to zoom
PCB Footprints
QT60326-ASG - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP- 44
click to zoom
3D Models
QT60326-ASG - Microchip - 3D model - Quad Flat Packages - TQFP- 44
click to zoom

QT60326-ASG Details

  • Manufacturer Part Number:

    QT60326-ASG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, TQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    TQFP-44

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP44,.39SQ,31

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

QT60326-ASG Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the QT60326-ASG evaluation board design files, which can be downloaded from the Microchip website. The layout includes guidelines for component placement, routing, and thermal management.
  • The QT60326-ASG can be configured for I2C or SPI communication by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations and timing diagrams.
  • The QT60326-ASG can operate up to 50 MHz, but the maximum frequency depends on the specific application and system design. Refer to the datasheet for more information on frequency limitations and system design considerations.
  • The QT60326-ASG has built-in capacitive touch sensing capabilities. Implementing capacitive touch sensing requires designing a sensor pad, configuring the QT60326-ASG registers, and using the Microchip-provided library functions. Refer to the datasheet and application notes for more information.
  • The power consumption of the QT60326-ASG depends on the operating mode, frequency, and system design. Refer to the datasheet for typical power consumption values and power-saving modes.
