QTH-090-01-H-D-A - SAMTEC

Description: 0.50 mm Q Strip® High-Speed Ground Plane Terminal Strip

Download QTH-090-01-H-D-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
QTH-090-01-H-D-A - SAMTEC - PCB symbol
click to zoom

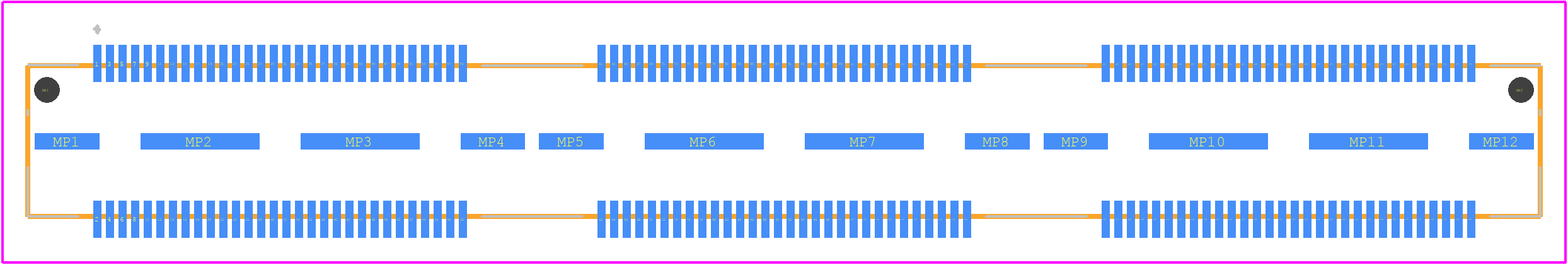

PCB Footprints
QTH-090-01-H-D-A - SAMTEC PCB footprint - Other - Other - QTH-090-01-H-D-A-2
click to zoom
3D Models
QTH-090-01-H-D-A - SAMTEC - 3D model - Other - QTH-090-01-H-D-A-2
click to zoom

QTH-090-01-H-D-A Details

  • Manufacturer Part Number:

    QTH-090-01-H-D-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8.68

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.235 inch

  • Body Depth:

    0.168 inch

  • Body Length:

    2.363 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.019 inch

  • Mating Contact Row Spacing:

    0.155 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    7.11 mm

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED KEY

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    90

  • UL Flammability Code:

    94V-0

QTH-090-01-H-D-A Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the QTH-090-01-H-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the QTH-090-01-H-D-A connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the QTH-090-01-H-D-A connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the QTH-090-01-H-D-A connector is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and hazardous materials.
  • The recommended mating cycle for the QTH-090-01-H-D-A connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends consulting their application notes for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QTH-090-01-H-D-A Overview

Use the download button to access the QTH-090-01-H-D-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QTH-0, or try a keyword search, such as Headers and Edge Type Connectors
