- Part Number QTS-050-03-L-D-A
- Manufacturer SAMTEC
- Pin Count 108
- Part Category Connector
- Package Category Other
- Footprint Name Other - QTS-050-03-L-D-A-1
- Released Date Apr 27, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
QTS-050-03-L-D-A Details
-
Manufacturer Part Number:
QTS-050-03-L-D-A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Costa Rica, USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
2 Weeks, 1 Day
-
Manufacturer:
Samtec Inc
-
YTEOL:
8
-
Additional Feature:
POLARIZED
QTS-050-03-L-D-A Frequently Asked Questions (FAQs)
-
The recommended mating sequence for QTS-050-03-L-D-A is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
-
Yes, the QTS-050-03-L-D-A is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
-
The maximum operating temperature for QTS-050-03-L-D-A is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
-
The QTS-050-03-L-D-A has a fixed mating height of 3mm. If you need a different mating height, you may need to consider a different part number or consult with Samtec's engineering team for a custom solution.
-
The recommended torque for the screw locks on QTS-050-03-L-D-A is 0.5-1.5 Nm (0.37-1.06 lb-in). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
Trust Checks
Expert Contribution
System Verified
Community Approved
QTS-050-03-L-D-A Overview

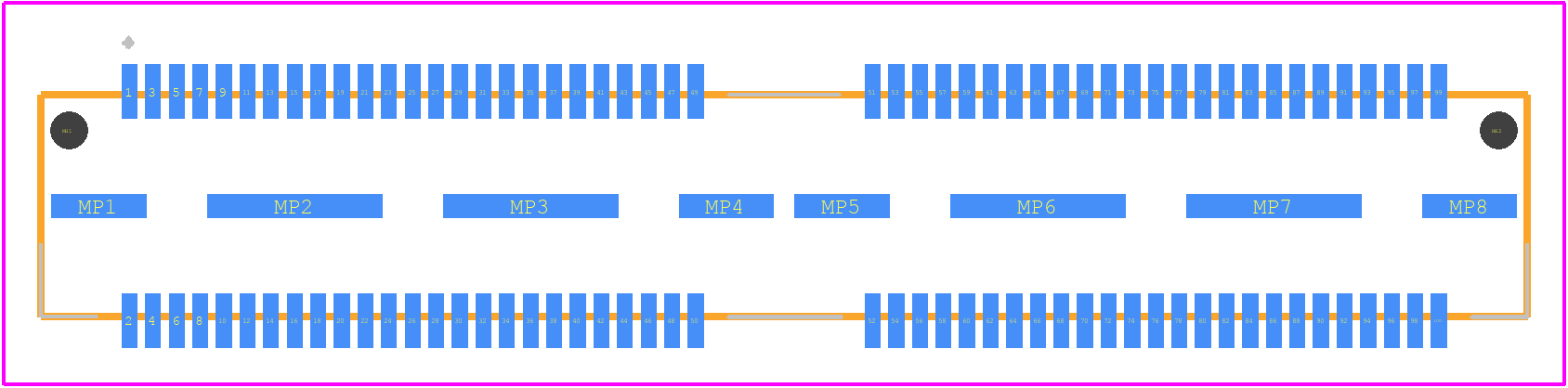

Use the download button to access the QTS-050-03-L-D-A schematic symbol, PCB footprint, and 3D model.
