RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure reliability in high-temperature environments, RECOM recommends following the derating curves provided in the datasheet. Additionally, ensure good airflow around the module, and consider using a heat sink or a metal plate to dissipate heat. It's also essential to follow proper soldering and assembly procedures to prevent thermal stress.
The maximum allowed capacitance for the output filter capacitor is not explicitly stated in the datasheet. However, RECOM recommends using a capacitor with a capacitance value of 10-22 μF, depending on the specific application requirements. It's essential to ensure that the capacitor's ESR (Equivalent Series Resistance) is low enough to prevent oscillations and instability.
Yes, the R-723.3P can be used in a redundant configuration for high-reliability applications. However, it's essential to ensure that the modules are properly synchronized and that the output voltages are properly monitored and controlled to prevent damage or instability in case of a failure.
The recommended input fuse rating for the R-723.3P is 2-5 A, depending on the specific application requirements and the input voltage. It's essential to ensure that the fuse rating is high enough to handle the module's input current, but low enough to protect the module from overcurrent conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R-723.3P Overview

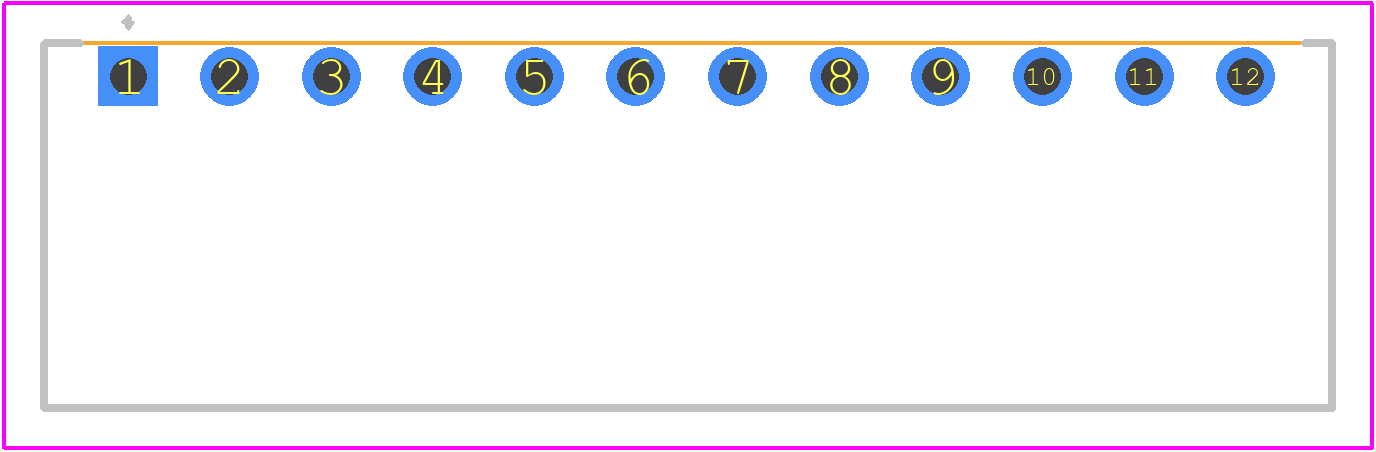

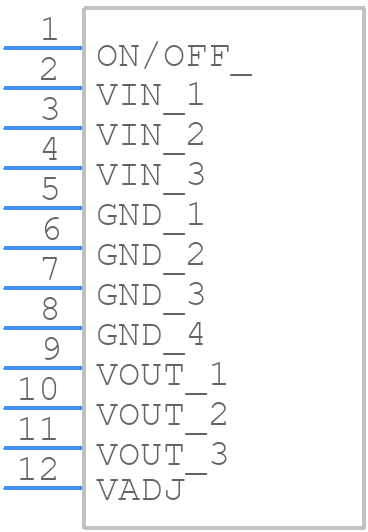

Use the download button to access the R-723.3P schematic symbol, PCB footprint, and 3D model.
