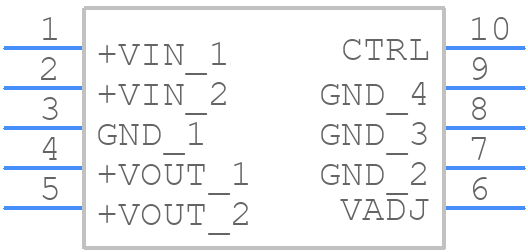

R-78AA5.0-1.0SMD-R - RECOM Power

R-78AA5.0-1.0SMD-R Details

• Manufacturer Part Number:

  R-78AA5.0-1.0SMD-R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP, GWDIP10,.44

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  6

• Additional Feature:

  POWER CONSIDER FROM MANUFACTURE WEBSITE LINK AVAILBLE IN ADDITIONAL FEATURE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  6.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDMA-G10

• JESD-609 Code:

  e1

• Length:

  15.3 mm

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  3 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  GWDIP10,.44

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  9.49 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  5 W

• Trim/Adjustable Output:

  YES

• Width:

  9.6 mm
