R-78T12-1.0/AC-TRAY footprint, schematic symbol and 3D model by RECOM Power

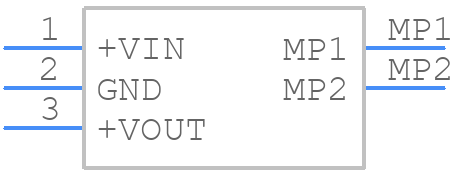

Symbol

click to zoom

PCB Footprints

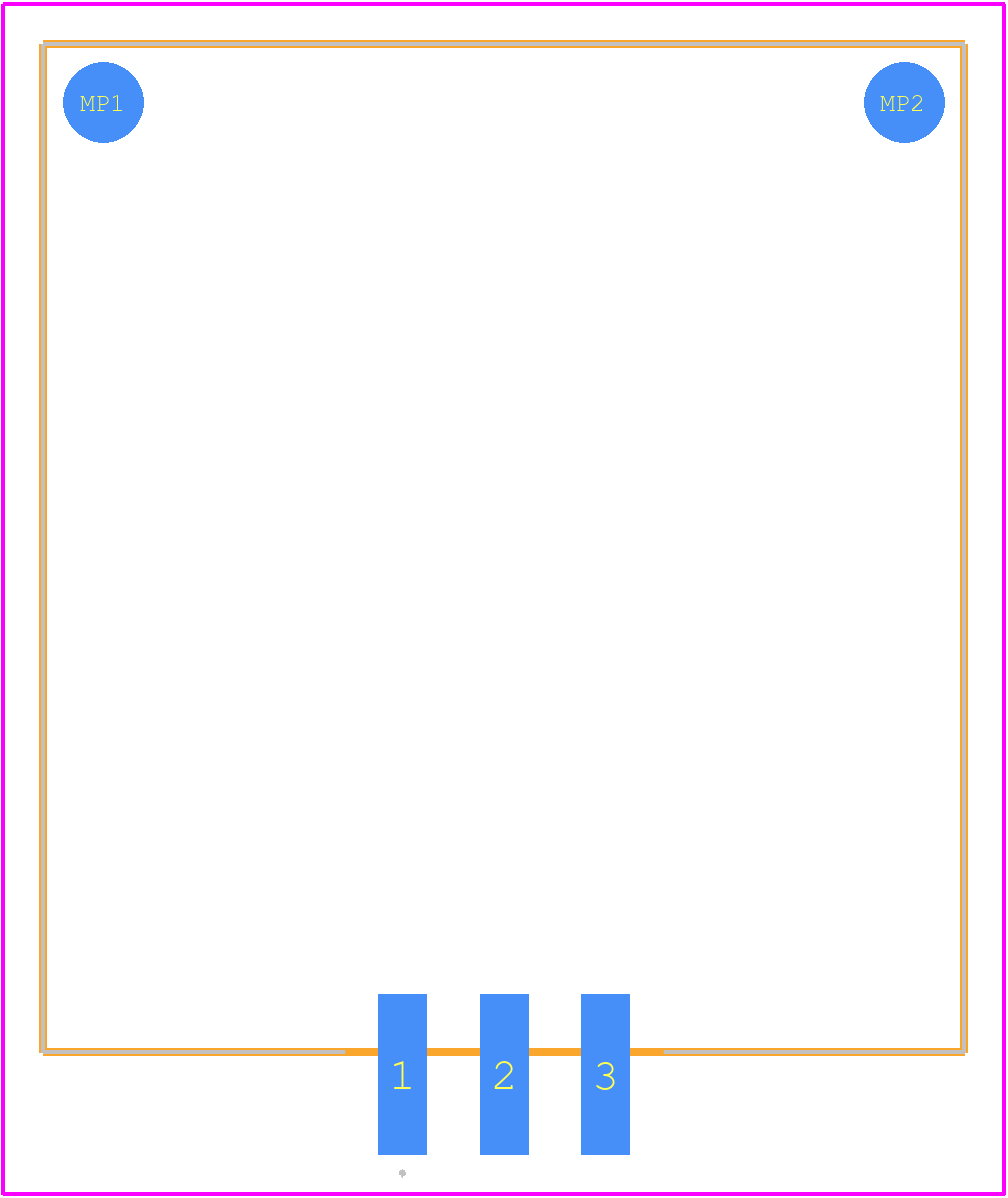

R-78T12-1.0/AC-TRAY - RECOM Power PCB footprint - Other - Other - R-78Txx-1.0/AC

click to zoom

3D Models

R-78T12-1.0/AC-TRAY - RECOM Power - 3D model - Other - R-78Txx-1.0/AC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R-78T12-1.0/AC-TRAY
Part Number R-78T12-1.0/AC-TRAY
Manufacturer RECOM Power
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - R-78Txx-1.0/AC
Released Date Jul 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)
