R-78T12-1.0/AL-TRAY footprint, schematic symbol and 3D model by RECOM Power

Symbol

click to zoom

PCB Footprints

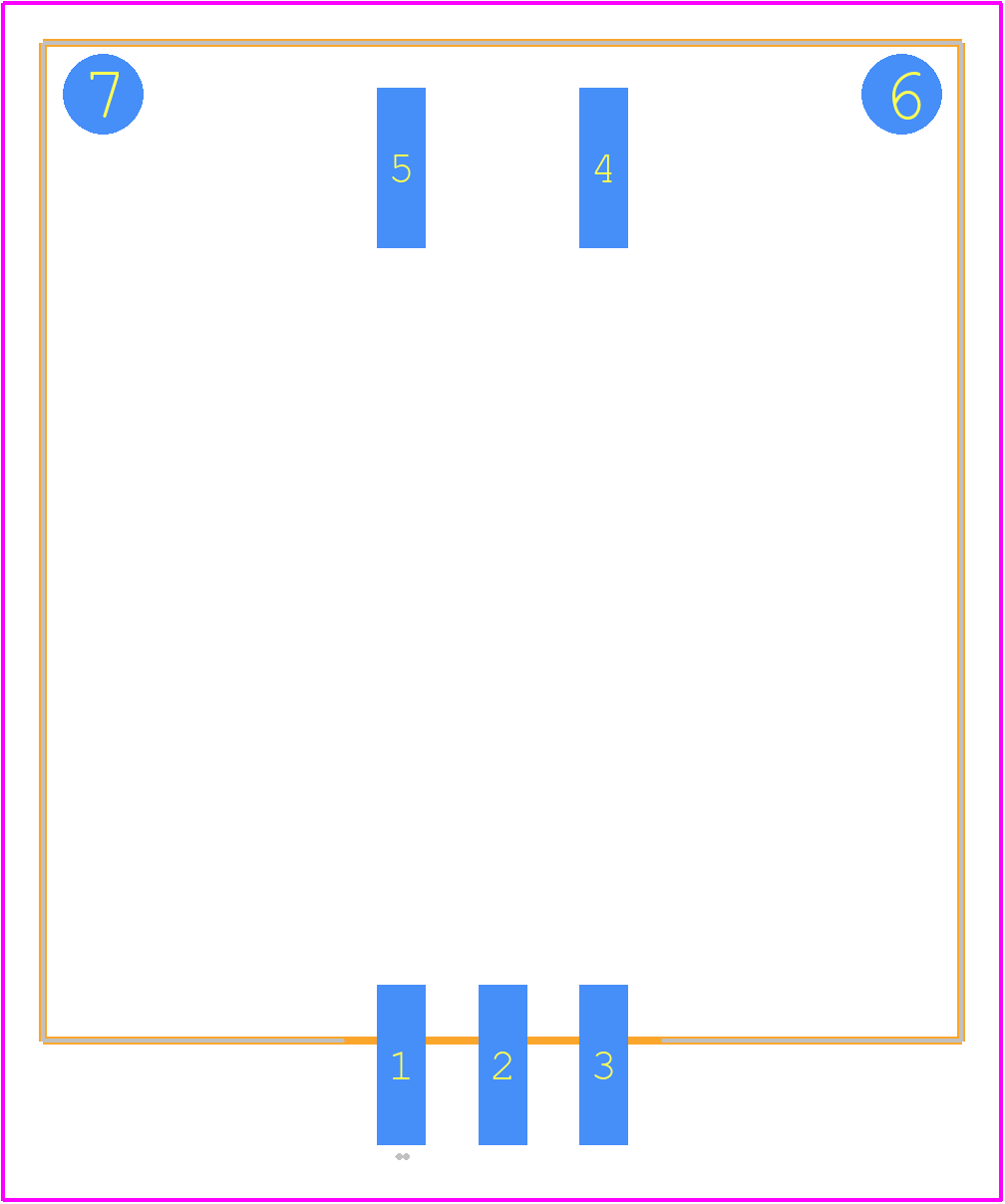

R-78T12-1.0/AL-TRAY - RECOM Power PCB footprint - Other - Other - R-78T5.0-1.0/AL-TRAY

click to zoom

3D Models

R-78T12-1.0/AL-TRAY - RECOM Power - 3D model - Other - R-78T5.0-1.0/AL-TRAY

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R-78T12-1.0/AL-TRAY
Part Number R-78T12-1.0/AL-TRAY
Manufacturer RECOM Power
Pin Count 3
Part Category Power Supply
Package Category Other
Footprint Name Other - R-78T5.0-1.0/AL-TRAY
Released Date Apr 27, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

R-78T12-1.0/AL-TRAY Details

Manufacturer Part Number:
R-78T12-1.0/AL-TRAY
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMA,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
42 V
Input Voltage-Min:
15 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XSMA-L3
Length:
25 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
3
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
12.36 V
Output Voltage-Min:
11.64 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10 mm
Surface Mount:
YES
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
L BEND
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
12 W
Trim/Adjustable Output:
NO
Width:
23 mm

R-78T12-1.0/AL-TRAY Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat efficiently. A minimum of 1 square inch of copper area is recommended.
Yes, the R-78T12-1.0/AL-TRAY is designed to withstand high vibrations and is suitable for use in industrial and transportation applications. However, it's recommended to follow proper mounting and screw torque procedures to ensure reliable operation.
The maximum output capacitance is not explicitly stated in the datasheet, but RECOM recommends limiting it to 10uF to ensure stability and prevent oscillations.
Yes, you can parallel multiple R-78T12-1.0/AL-TRAY modules to increase the output current, but it's essential to ensure that each module has its own input filter and that the output voltages are matched to within 1% to prevent current imbalance.
RECOM recommends using a fuse with a rating of 1.5 to 2 times the maximum input current to ensure reliable operation and protection against overcurrent conditions.
