R10-E2X4-V185 - TE Connectivity

Description: General Purpose Relays 4PDT 5A 12VDC 185Ohm GEN PURPOSE RELAY

Download R10-E2X4-V185 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

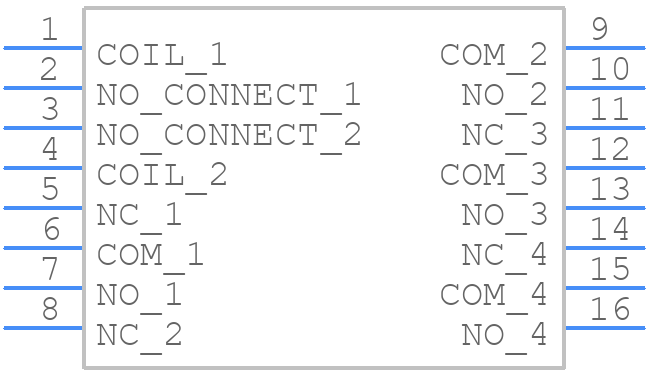

Symbol
R10-E2X4-V185 - TE Connectivity - PCB symbol
click to zoom

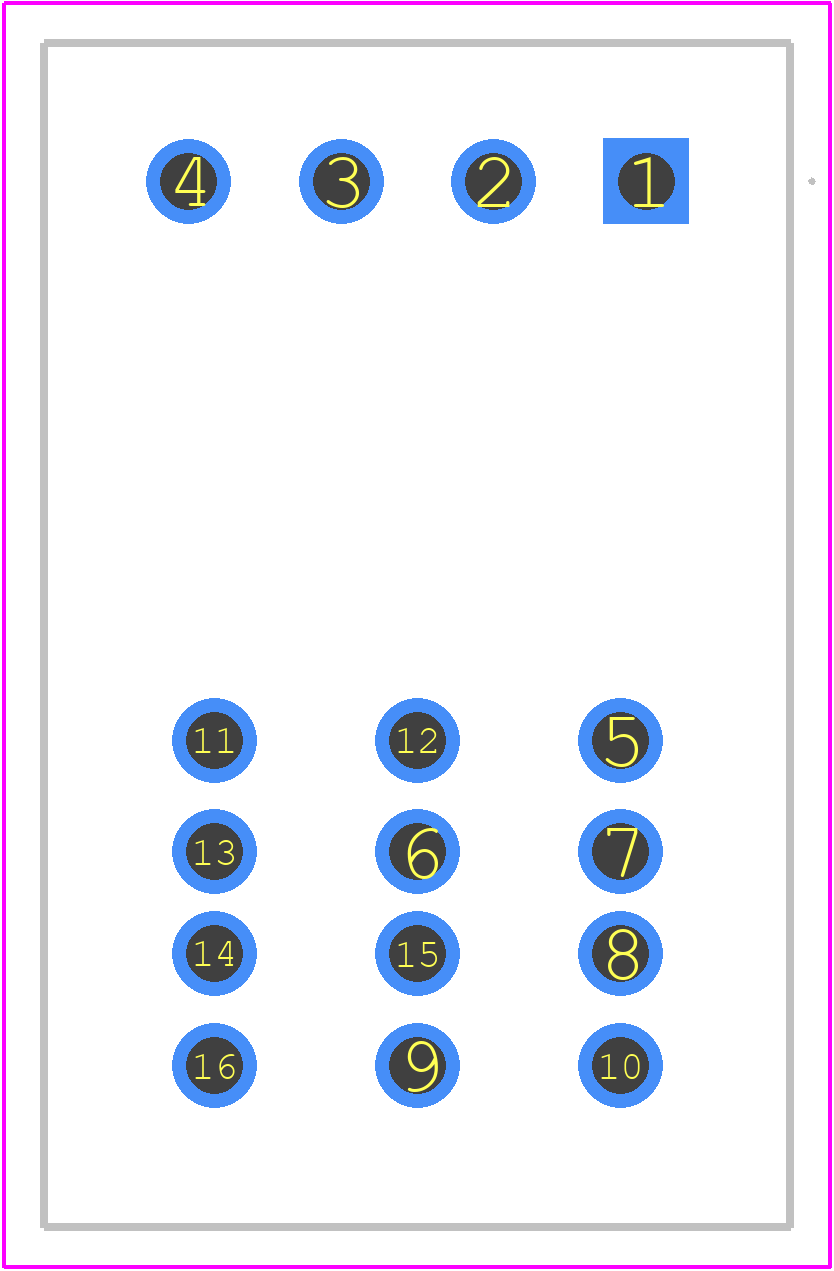

PCB Footprints
R10-E2X4-V185 - TE Connectivity PCB footprint - Other - Other - R10-E2X4-V185-3
click to zoom
3D Models
R10-E2X4-V185 - TE Connectivity - 3D model - Other - R10-E2X4-V185-3
click to zoom

R10-E2X4-V185 Details

  • Manufacturer Part Number:

    R10-E2X4-V185

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    37 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    18.7 mm

  • Body Height:

    30.2 mm

  • Body Length or Diameter:

    24.1 mm

  • Coil Current(DC)-Max:

    0.042 A

  • Coil Power:

    900 mW

  • Coil Resistance:

    185 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact Voltage(AC)-Max:

    120 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1000 Vrms

  • Dielectric Strength Between Open Contacts:

    500 Vrms

  • End Contact Material:

    SILVER CADMIUM OXIDE

  • Insulation Resistance:

    10000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -55 °C

  • Physical Dimension:

    29.6mm x 18.7mm x 30.2mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    4 FORM C

  • Relay Function:

    4PDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    40 g

R10-E2X4-V185 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of R10-E2X4-V185 is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the R10-E2X4-V185 relay is designed to withstand vibrations up to 10-2000 Hz, 10 G acceleration, and 6 ms duration, making it suitable for high-vibration environments.
  • The R10-E2X4-V185 relay has an operating temperature range of -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • The R10-E2X4-V185 relay is not intended for use in safety-critical applications, such as those requiring IEC 61508 or ISO 26262 certification. It is recommended to use relays specifically designed for safety-critical applications.
  • The R10-E2X4-V185 relay has a rating of IP40, which means it provides protection against solid objects larger than 1 mm, but it is not designed for use in humid or wet environments. For such applications, consider using relays with a higher IP rating or additional protection measures.
