R107303040 footprint, schematic symbol and 3D model by Radiall

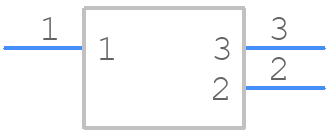

Symbol

click to zoom

PCB Footprints

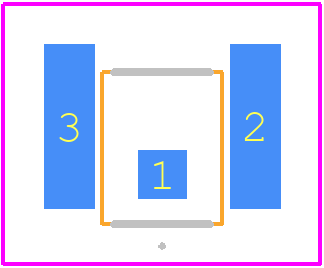

R107303040 - Radiall PCB footprint - Other - Other - R107303040-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R107303040
Part Number R107303040
Manufacturer Radiall
Pin Count 3
Part Category Connector
Package Category Other
Footprint Name Other - R107303040-1
Released Date Aug 27, 2026
Last Modified Date Aug 27, 2026 1:40 PM UTC
Pinout / Pin List Click Here (Member Only)

R107303040 Details

Manufacturer Part Number:
R107303040
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
14 Weeks, 2 Days
Manufacturer:
Radiall
Additional Feature:
VSWR MAX AT 1 GHZ
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
50 Ω
Connector Type:
RF CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
SNAP
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Loss:
0.49 dB
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Operating Frequency-Max:
6 GHz
Option:
GENERAL PURPOSE
Panel Mount:
NO
Termination Type:
SURFACE MOUNT
VSWR:
1.23

R107303040 Frequently Asked Questions (FAQs)

The recommended torque value for the R107303040 connector is 0.8 Nm (7 in-lbs) for the screw clamp and 1.2 Nm (10 in-lbs) for the nut.
Yes, the R107303040 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration.
Yes, the R107303040 connector is designed to operate in harsh environments, with an operating temperature range of -55°C to 125°C and a humidity range of 95% RH at 40°C.
The R107303040 connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the R107303040 connector is part of Radiall's R series, which is designed to be compatible with other R series connectors, allowing for flexibility in design and assembly.

Trust Checks

Expert Contribution

System Verified

Community Approved

R107303040 Overview

Use the download button to access the R107303040 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like R1073, or try a keyword search, such as Other RF Connectors
