R12-100B footprint, schematic symbol and 3D model by RECOM Power

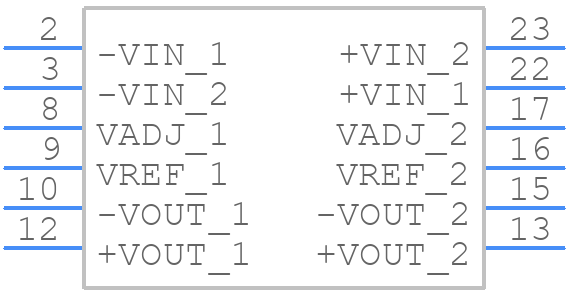

Symbol

click to zoom

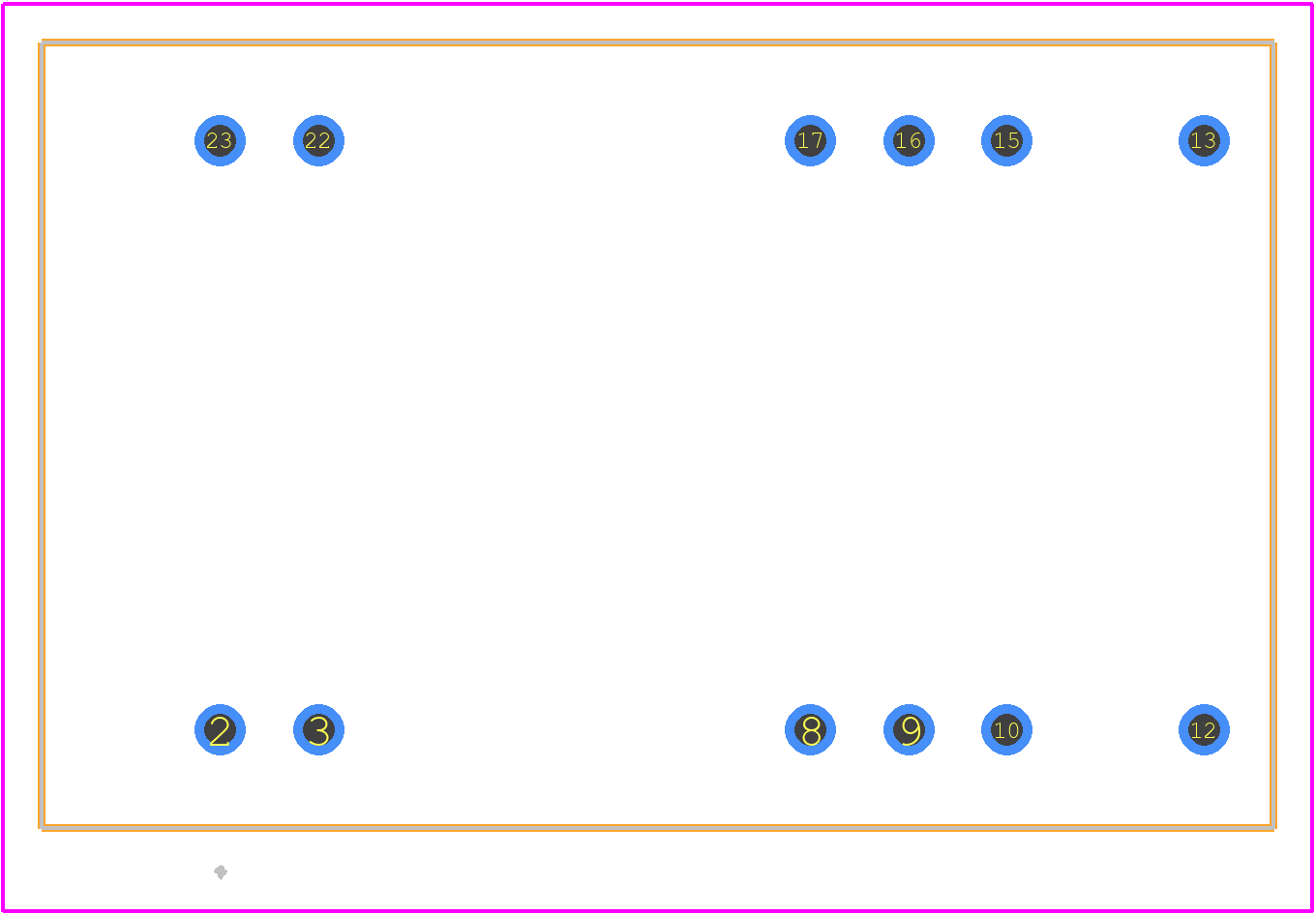

PCB Footprints

R12-100B - RECOM Power PCB footprint - Other - Other - Rxx-100_150B

click to zoom

3D Models

R12-100B - RECOM Power - 3D model - Other - Rxx-100_150B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R12-100B
Part Number R12-100B
Manufacturer RECOM Power
Pin Count 12
Part Category Power Supply
Package Category Other
Footprint Name Other - Rxx-100_150B
Released Date Jul 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

R12-100B Details

Manufacturer Part Number:
R12-100B
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DMA,
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
82%
Input Voltage-Max:
14 V
Input Voltage-Min:
10 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDMA-P12
Length:
31.8 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
12
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.05 A
Output Voltage-Max:
135 V
Output Voltage-Min:
50 V
Output Voltage-Nom:
103 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
255
Qualification Status:
Not Qualified
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
9.9 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
5
Total Power Output-Max:
5 W
Trim/Adjustable Output:
YES
Width:
20.3 mm

R12-100B Frequently Asked Questions (FAQs)

RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
To ensure reliability, RECOM recommends operating the module within the specified temperature range (up to 85°C) and providing adequate airflow to prevent overheating. Additionally, ensure that the module is properly soldered and the PCB is designed to minimize thermal resistance.
RECOM recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a value of 10-22 μF, depending on the specific application requirements. The capacitor should be placed as close to the module's input pins as possible.
RECOM recommends using a TVS (Transient Voltage Suppressor) diode or a varistor in parallel with the input capacitor to protect the module from voltage transients and surges. The TVS diode should be selected based on the specific application requirements.
RECOM recommends using a low-ESR ceramic capacitor (e.g., X7R or X5R) with a value of 10-22 μF, depending on the specific application requirements. The capacitor should be placed as close to the module's output pins as possible.

Trust Checks

Expert Contribution

System Verified

Community Approved

R12-100B Overview

Use the download button to access the R12-100B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R12-1, or try a keyword search, such as Power Supply Modules
