R1207N813B-TR-FE - Ricoh

Description: Switching Voltage Regulators Boost DC/DC Converter

Download R1207N813B-TR-FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

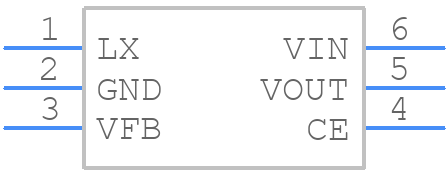

R1207N813B-TR-FE - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1207N813B-TR-FE - Ricoh PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOT-23-6
click to zoom
3D Models
R1207N813B-TR-FE - Ricoh - 3D model - SOT23 (6-Pin) - TSOT-23-6
click to zoom

R1207N813B-TR-FE Details

  • Manufacturer Part Number:

    R1207N813B-TR-FE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    10

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1207N813B-TR-FE Overview

Use the download button to access the R1207N813B-TR-FE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1207, or try a keyword search, such as Switching Regulator or Controllers
