Ricoh provides a recommended PCB layout and land pattern in their application note (AN1434) for the R1240 series, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize parasitic effects.
The output capacitor selection depends on the specific application requirements, such as output voltage ripple, transient response, and ESR. A general guideline is to choose a capacitor with a low ESR (less than 10 mΩ) and a capacitance value between 10 μF to 100 μF. Consult the datasheet and application notes for more detailed guidance.
Although the datasheet doesn't specify a maximum input voltage ripple, a general rule of thumb is to keep the input voltage ripple within 1% to 2% of the nominal input voltage. Excessive input voltage ripple can affect the regulator's performance and stability.
The R1240K003B-TR has a maximum operating temperature range of -40°C to 105°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the thermal management and derating factors when operating the device in high-temperature environments.
To ensure stability, follow the recommended PCB layout and component selection guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and consider adding a noise filter or a feedforward capacitor to improve stability and reduce oscillation risks.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R1240K003B-TR Overview

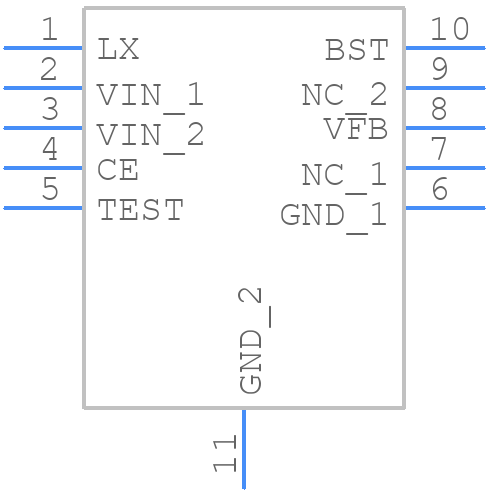

Use the download button to access the R1240K003B-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1240,
or try a keyword search, such as Switching Regulator or Controllers
