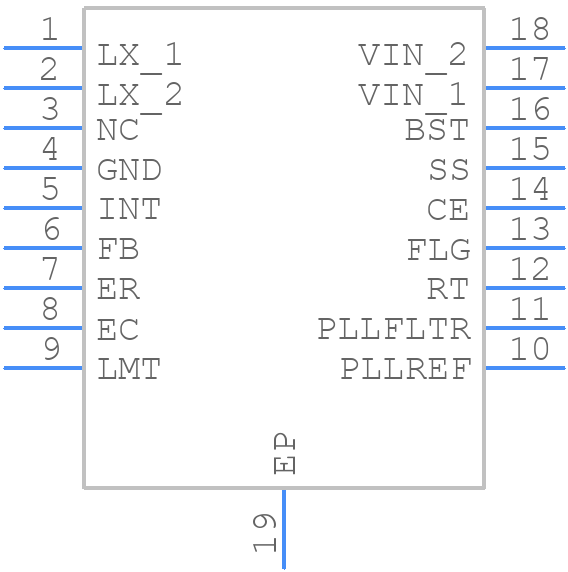

R1270S001A-E2-FE - Ricoh

R1270S001A-E2-FE Details

• Manufacturer Part Number:

  R1270S001A-E2-FE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Package Description:

  HSOP-18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Ricoh Electronic Devices Co Ltd

• Additional Feature:

  IT ALSO HAS VFM MODE OF CONTROL

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  34 V

• Input Voltage-Min:

  3.6 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G18

• JESD-609 Code:

  e3

• Length:

  5.2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLSSOP

• Package Equivalence Code:

  SSOP18,.25,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.6 mm

• Supply Current-Max (Isup):

  1.3 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2640 kHz

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Width:

  4.4 mm
