Part Image

R1271L501A-TR - Ricoh

Description: Switching Voltage Regulators 30V, 1A Synchronous PWM Step-down DC/DC Converter

Download R1271L501A-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

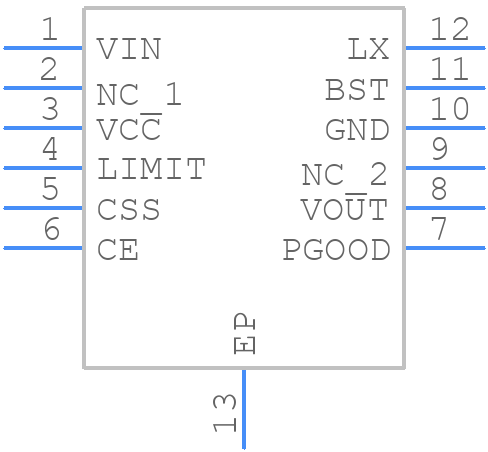

Symbol
R1271L501A-TR - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1271L501A-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN3030-12B
click to zoom
3D Models
R1271L501A-TR - Ricoh - 3D model - Small Outline No-lead - DFN3030-12B
click to zoom

R1271L501A-TR Details

  • Manufacturer Part Number:

    R1271L501A-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1271L501A-TR Overview

Use the download button to access the R1271L501A-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1271, or try a keyword search, such as Switching Regulator or Controllers
