Part Image

R1276S001A-E2-FE - Ricoh

Description: Switching Voltage Regulators 30V, 3A Synchronous Step-down DC/DC Converter

Download R1276S001A-E2-FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

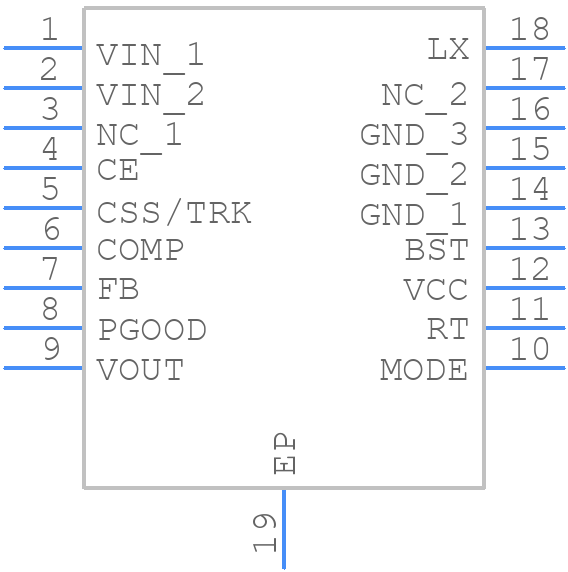

Symbol
R1276S001A-E2-FE - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1276S001A-E2-FE - Ricoh PCB footprint - Small Outline Packages - Small Outline Packages - HSOP-18
click to zoom
3D Models
R1276S001A-E2-FE - Ricoh - 3D model - Small Outline Packages - HSOP-18
click to zoom

R1276S001A-E2-FE Details

  • Manufacturer Part Number:

    R1276S001A-E2-FE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-26

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1276S001A-E2-FE Overview

Use the download button to access the R1276S001A-E2-FE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1276, or try a keyword search, such as Switching Regulator or Controllers
