R1283K002C-TR - Ricoh

Description: Step Up DC/DC (CH1) Internal Nch MOSFET Driver (RON=400mTyp.) Adjustable VOUT Up to 20V with external resistor Internal Soft start function (Typ. 4.5ms) Over Current Protection Maximum Duty Cycle: 91%(Typ.)  Inverting DC/DC (CH2) Internal Pch MOSFET Driver (RON=400m Typ.) Adjustable VOUT Up to Vdd-20V with external resistor Auto Discharge function for negative output Internal Soft start function (Typ. 4.5ms) Over Current Protection Maximum Duty Cycle: 91%(Typ.)

Download R1283K002C-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

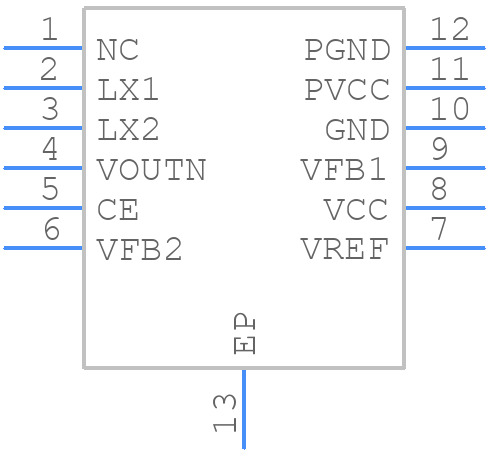

R1283K002C-TR - Ricoh - PCB symbol
click to zoom
PCB Footprints
R1283K002C-TR - Ricoh PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN(PLP)2730-12
click to zoom
3D Models
R1283K002C-TR - Ricoh - 3D model - Small Outline No-lead - DFN(PLP)2730-12
click to zoom

R1283K002C-TR Details

  • Manufacturer Part Number:

    R1283K002C-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    MODULE

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Ricoh Electronic Devices Co Ltd

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC12(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1600 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

R1283K002C-TR Frequently Asked Questions (FAQs)

  • Ricoh recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to decouple the input voltage with a capacitor. Additionally, the output voltage should be filtered with a capacitor to reduce noise.
  • The maximum allowed input voltage ripple is 100mVp-p. Exceeding this value may affect the regulator's performance and stability.
  • The R1283K002C-TR is rated for operation up to 125°C. However, the output current may need to be derated at higher temperatures to prevent overheating. Consult the datasheet for specific derating curves.
  • The R1283K002C-TR has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or voltage.
