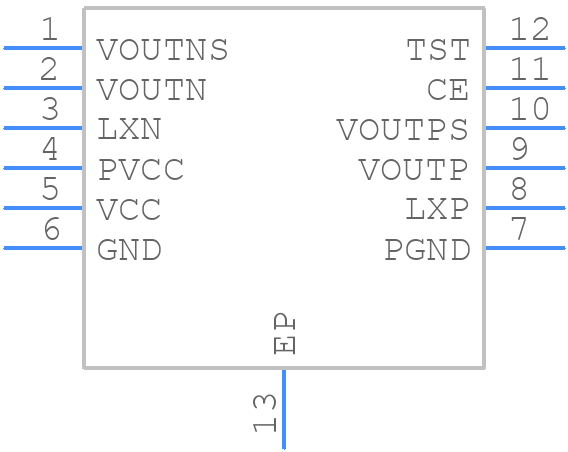

R1286K010E-TR - Ricoh

R1286K010E-TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Ricoh recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
• How do I ensure stable output voltage regulation?
  To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to decouple the input voltage with a capacitor. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
• What is the maximum allowed input voltage ripple for this regulator?
  The maximum allowed input voltage ripple for the R1286K010E-TR is 1Vp-p. Exceeding this value may affect the regulator's performance and stability.
• Can I use this regulator in a high-temperature environment?
  The R1286K010E-TR is rated for operation up to 125°C. However, the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper heat dissipation and to derate the output current accordingly in high-temperature environments.
• How do I protect the regulator from overcurrent and short-circuit conditions?
  The R1286K010E-TR has built-in overcurrent protection (OCP) and short-circuit protection (SCP). However, it's still recommended to add external protection components, such as fuses or PTC resistors, to prevent damage from excessive current or voltage.
