R1290K103A-E2 - Nisshinbo

Description: Triple Output DCDC Converter for LCD/CCD

Download R1290K103A-E2 Model

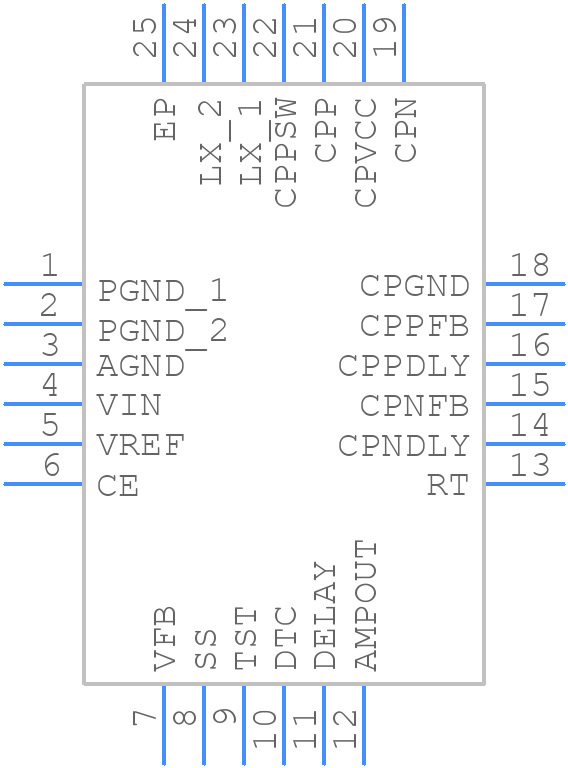

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R1290K103A-E2 - Nisshinbo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN0404-24
click to zoom
3D Models
R1290K103A-E2 - Nisshinbo  - 3D model - Quad Flat No-Lead - QFN0404-24
click to zoom

R1290K103A-E2 Details

  • Manufacturer Part Number:

    R1290K103A-E2

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN0404-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.3 V

  • Input Voltage-Nom:

    3.5 V

  • JESD-30 Code:

    S-XQCC-N24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    20 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Packing Method:

    TR

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1600 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD
