R1517S331D-E2-FE - Nisshinbo

R1517S331D-E2-FE Details

• Manufacturer Part Number:

  R1517S331D-E2-FE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

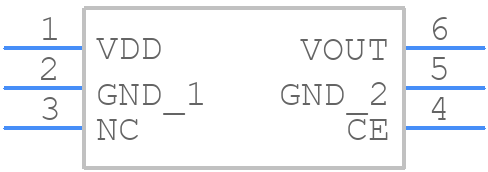

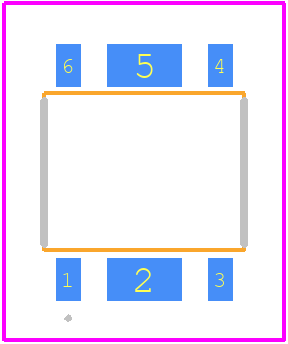

• Package Description:

  HSOP-6

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Nisshinbo Micro Devices

• YTEOL:

  6.2

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.77 V

• Dropout Voltage1-Nom:

  0.45 V

• Input Voltage Absolute-Max:

  50 V

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  3.5 V

• JESD-30 Code:

  R-PDSO-G6

• JESD-609 Code:

  e3

• Length:

  5.02 mm

• Line Regulation-Max:

  0.0459%

• Load Regulation-Max:

  0.04%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  3.359 V

• Output Voltage1-Min:

  3.241 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP6,.23,75

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.85 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.905 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Voltage Tolerance-Max:

  2%

• Width:

  3.9 mm
