The recommended input capacitor value is 1uF to 10uF, with a voltage rating of 10V or higher, to ensure stable operation and reduce noise.
While the R1524S050B-E2-KE has an operating temperature range of -40°C to 105°C, it's recommended to derate the output current and consider thermal design considerations for high-temperature applications (above 85°C) to ensure reliability and prevent overheating.
To ensure stability, follow the recommended PCB layout guidelines, use a sufficient output capacitor (1uF to 10uF), and keep the input and output capacitors close to the IC. Additionally, avoid using long, thin traces and minimize the distance between the input and output pins.
The maximum dropout voltage for the R1524S050B-E2-KE is 1.5V, which means the input voltage should be at least 1.5V higher than the output voltage to ensure proper regulation.
Yes, the R1524S050B-E2-KE is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA and low dropout voltage. However, consider the battery's voltage range and the regulator's input voltage requirements to ensure proper operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R1524S050B-E2-KE Overview

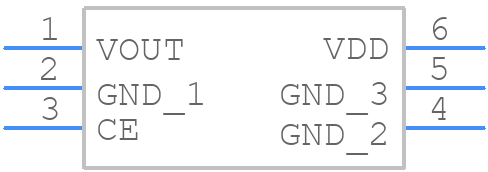

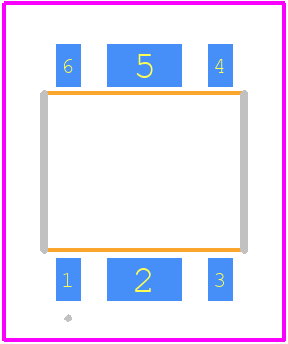

Use the download button to access the R1524S050B-E2-KE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like R1524,
or try a keyword search, such as Linear Regulator ICs
Suggested Parts
If you searched for R1524S050B-E2-KE, you might also be interested in these parts:
