R1580N001A-TR-FE - Ricoh

Description: LED Lighting Drivers 34V Constant-Current LED Driver Controller

Download R1580N001A-TR-FE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this R1580N001A-TR-FE model

Email notifications will be applied after download.

Send part feedback

Symbol

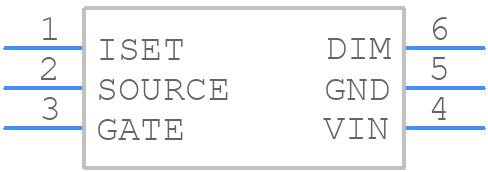

R1580N001A-TR-FE - Ricoh - PCB symbol

PCB Footprints

R1580N001A-TR-FE - Ricoh PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-23-6

3D Models

R1580N001A-TR-FE - Ricoh - 3D model - SOT23 (6-Pin) - SOT-23-6

Datasheet Download Datasheet
Stock & Prices Price & Stock for R1580N001A-TR-FE
Part Number R1580N001A-TR-FE
Manufacturer Ricoh
Pin Count 6
Part Category Integrated Circuit
Package Category SOT23 (6-Pin)
Footprint Name SOT23 (6-Pin) - SOT-23-6
Released Date Apr 21, 2023
Last Modified Date Apr 22, 2023 6:26 AM UTC
Pinout / Pin List Click Here (Member Only)

R1580N001A-TR-FE Details

Manufacturer Part Number:
R1580N001A-TR-FE
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Ricoh Electronic Devices Co Ltd
Interface IC Type:
LED DISPLAY DRIVER

Trust Checks

Community Provided

System Verified

Community Approved

R1580N001A-TR-FE Overview

Use the download button to access the R1580N001A-TR-FE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R1580, or try a keyword search, such as Display Drivers
