R161441000W - Radiall

Description: Radiall 50Ω Straight Panel Mount N Connector, Plug, Solder Termination, 0 → 11GHz

Download R161441000W Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this R161441000W model

Email notifications will be applied after download.

Send part feedback

Symbol

R161441000W - Radiall - PCB symbol

PCB Footprints

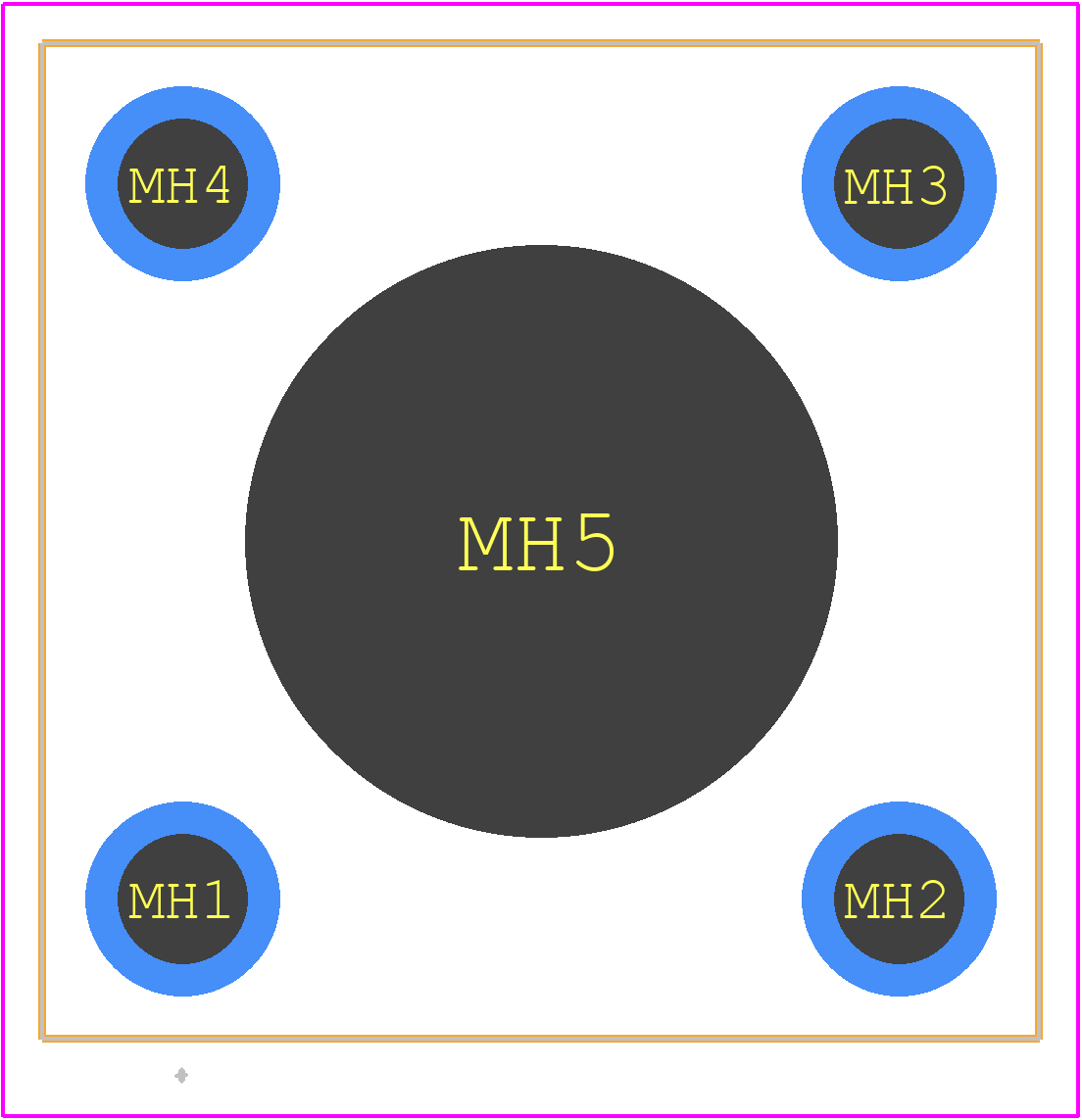

R161441000W - Radiall PCB footprint - Other - Other - R161441000W-1

3D Models

R161441000W - Radiall - 3D model - Other - R161441000W-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for R161441000W
Part Number R161441000W
Manufacturer Radiall
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - R161441000W-1
Released Date May 11, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

R161441000W Details

Manufacturer Part Number:
R161441000W
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Factory Lead Time:
7 Weeks, 6 Days
Manufacturer:
Radiall
YTEOL:
6.95
Additional Feature:
CAPTIVE CENTER CONTACT
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
50 Ω
Connector Type:
RF N CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Coupling Type:
THREADED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insertion Loss:
0.17 dB
Insulator Material:
POLYTETRAFLUOROETHYLENE
MIL Conformance:
NO
Mounting Style:
STRAIGHT
Operating Frequency-Max:
11 GHz
Option:
GENERAL PURPOSE
Panel Mount:
YES
Termination Type:
SOLDER
