R1EX24008ASAS0I#U0 - Renesas Electronics

Description: R1EX24xxx series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM). They realize High-Speed, low power consumption and a high level of reliability by employing advanced MONOS memory technology and CMOS process and low voltage circuitry technology. They also have a 16-byte page programming function to make their write operation faster.

Download R1EX24008ASAS0I#U0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

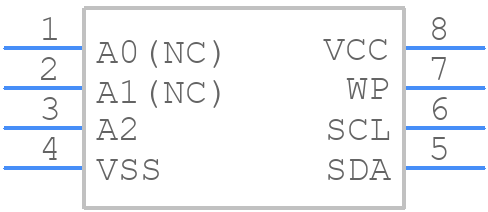

R1EX24008ASAS0I#U0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R1EX24008ASAS0I#U0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 150 mil 8-pin plastic SOP PRSP0008DF-B (FP-8DBV) Lead free--1
click to zoom
3D Models
R1EX24008ASAS0I#U0 - Renesas Electronics - 3D model - Small Outline Packages - 150 mil 8-pin plastic SOP PRSP0008DF-B (FP-8DBV) Lead free--1
click to zoom

R1EX24008ASAS0I#U0 Details

  • Manufacturer Part Number:

    R1EX24008ASAS0I#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PRSP0008DF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    0.4 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000 Write/Erase Cycles

  • I2C Control Byte:

    1010DMMR

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.89 mm

  • Memory Density:

    8192 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1024 words

  • Number of Words Code:

    1000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1.73 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000002 A

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

R1EX24008ASAS0I#U0 Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for PCB layout and thermal management in their application notes. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
  • The R1EX24008ASAS0I#U0 has built-in overcurrent protection, but it's recommended to implement additional external protection circuits to ensure robust fault detection and protection. Renesas provides guidance on implementing overcurrent protection and fault detection in their application notes and design guides.
  • Renesas provides specific power-up and power-down sequence recommendations in their datasheet and application notes. It's crucial to follow these sequences to prevent damage to the device and ensure reliable operation.
  • Renesas provides guidance on optimizing the device for low-power consumption and reducing standby current in their application notes and design guides. Techniques include using power-saving modes, reducing clock frequencies, and optimizing voltage regulators.
  • Renesas recommends following standard ESD protection and handling procedures, such as using anti-static wrist straps, mats, and bags, and handling the device by the body rather than the pins. Additionally, Renesas provides specific guidance on ESD protection in their datasheet and application notes.
