Description:R1EX24xxx series are two-wire serial interface EEPROM (Electrically Erasable and Programmable ROM). They realize High-Speed, low power consumption and a high level of reliability by employing advanced MONOS memory technology and CMOS process and low voltage circuitry technology. They also have a 64-byte page programming function to make their write operation faster.
Renesas recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
Renesas recommends following the thermal design guidelines, using a heat sink if necessary, and ensuring the device operates within the specified temperature range (–40°C to +125°C). Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Renesas recommends using high-frequency, low-ESR capacitors (e.g., 0.1 μF to 1 μF) placed as close as possible to the power pins. The capacitors should be rated for the maximum operating voltage and have a low inductance to minimize noise and voltage droop.
The R1EX24256BSAS0I#K0 has an internal POR and BOR circuitry. Ensure that the power supply ramps up slowly (typically < 10 ms) to allow the POR to function correctly. Also, consider adding external reset circuitry to handle power-on and brown-out conditions, if required by your application.
Renesas recommends following good EMC design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding or filtering to reduce EMI. Additionally, ensure that the device is operated within the specified frequency range and that clock signals are properly terminated.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R1EX24256BSAS0I#K0 Overview

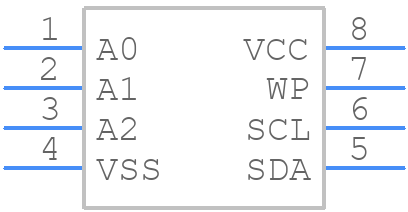

Use the download button to access the R1EX24256BSAS0I#K0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1EX2,
or try a keyword search, such as EEPROMs
