R1LP0108ESF-5SI#B1 footprint, schematic symbol and 3D model by Renesas Electronics

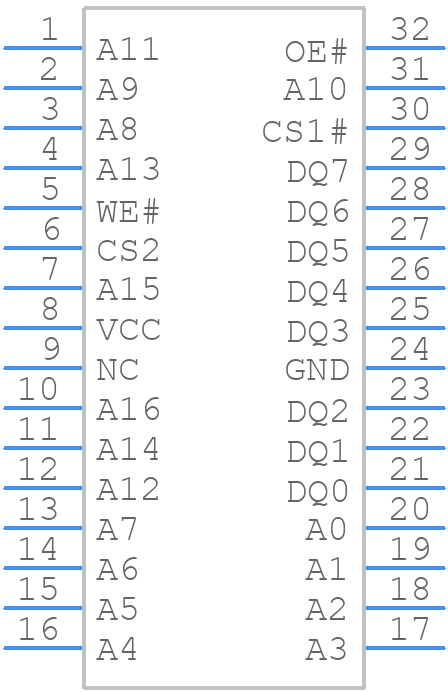

Symbol

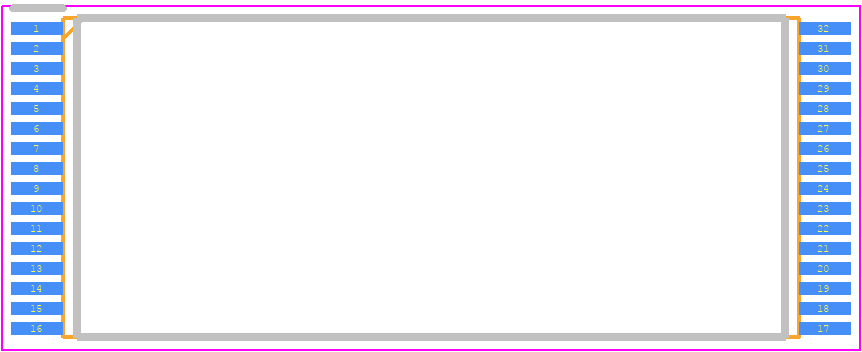

PCB Footprints

3D Models

R1LP0108ESF-5SI#B1 Details

For optimal thermal performance, it is recommended to use a 4-layer PCB with a solid ground plane and a thermal relief pattern under the package. Additionally, ensure that the PCB has adequate thermal vias to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, ensure that the device is operated within the recommended voltage and current specifications. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to maintain a stable temperature.
The recommended soldering conditions for this device are a peak temperature of 260°C, with a soldering time of 10-30 seconds. It is also recommended to use a solder with a melting point of 217°C or higher.
To handle ESD protection for this device, ensure that all handling and assembly procedures follow ESD-safe practices. Use ESD-protective packaging, wrist straps, and mats to prevent static electricity damage.
The recommended storage conditions for this device are a temperature range of -40°C to 125°C, with a relative humidity of 60% or less. Store the devices in their original packaging or in a dry, ESD-protected environment.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the R1LP0108ESF-5SI#B1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R1LP0, or try a keyword search, such as SRAMs
