R1LP0108ESP-5SI - Renesas Electronics

Description: SRAM, 1MBIT, 5V, 55NS, 32SOP

Download R1LP0108ESP-5SI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

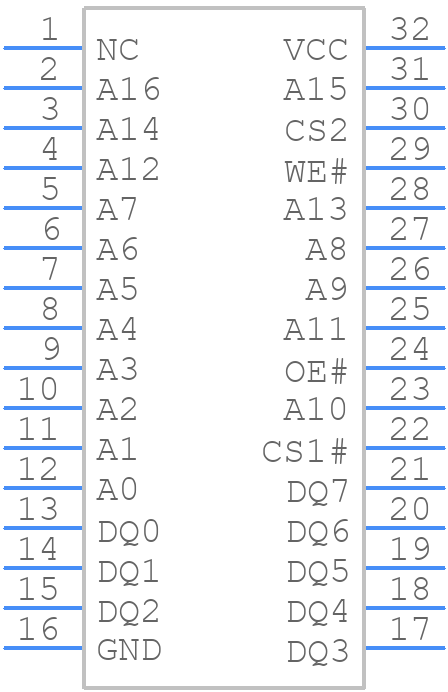

R1LP0108ESP-5SI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

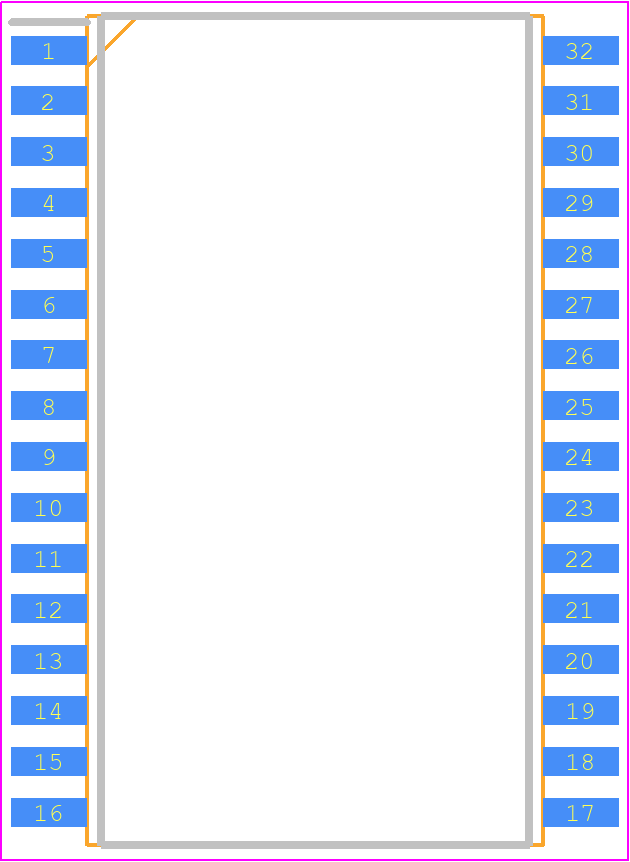

R1LP0108ESP-5SI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - P-SOP32-11.4x20.75-1.27-1
click to zoom
3D Models
R1LP0108ESP-5SI - Renesas Electronics - 3D model - Small Outline Packages - P-SOP32-11.4x20.75-1.27-1
click to zoom

R1LP0108ESP-5SI Details

  • Manufacturer Part Number:

    R1LP0108ESP-5SI

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.525 INCH, PLASTIC, SOP-32

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    55 ns

  • JESD-30 Code:

    R-PDSO-G32

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

R1LP0108ESP-5SI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01LP0108ESP-5SI-AN) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • Renesas recommends a power-up sequence of VCC first, followed by VDD, and then the input signals. This sequence helps prevent latch-up and ensures proper device operation.
  • Renesas recommends implementing ESD protection measures, such as using ESD protection diodes or TVS diodes, on the input and output pins to prevent damage from electrostatic discharge.
  • The R1LP0108ESP-5SI has an operating temperature range of -40°C to 125°C, but Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R1LP0108ESP-5SI Overview

Use the download button to access the R1LP0108ESP-5SI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1LP0, or try a keyword search, such as SRAMs
