Description:Support is limited to customers who have already adopted these products.Renesas is the worldwide #1 Low Power SRAM supplier with a full lineup and well balanced long term support. High density and high performance RAMs using Renesas's original technology, for example the Advanced LPSRAM new memory cell concept are offered.
Renesas provides a recommended PCB layout guide for the R1LP0408CSP-5SC#B0, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The power-up sequence for the R1LP0408CSP-5SC#B0 is critical to ensure proper operation. Renesas recommends a specific power-up sequence, which involves powering up the VCC pin before the VDD pin, and ensuring that the voltage on the VCC pin reaches its minimum specified value before applying a clock signal.
Renesas recommends using decoupling capacitors with a value of 0.1uF to 1uF, with a voltage rating of 10V or higher, and placed as close as possible to the power pins of the R1LP0408CSP-5SC#B0.
To troubleshoot issues with the clock signal, Renesas recommends checking the clock signal frequency, amplitude, and jitter using an oscilloscope, and ensuring that the clock signal meets the specifications outlined in the datasheet.
The R1LP0408CSP-5SC#B0 is rated for operation in temperatures ranging from -40°C to 125°C, and storage in temperatures ranging from -40°C to 150°C. It is also sensitive to moisture and humidity, and should be stored in a dry, clean environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R1LP0408CSP-5SC#B0 Overview

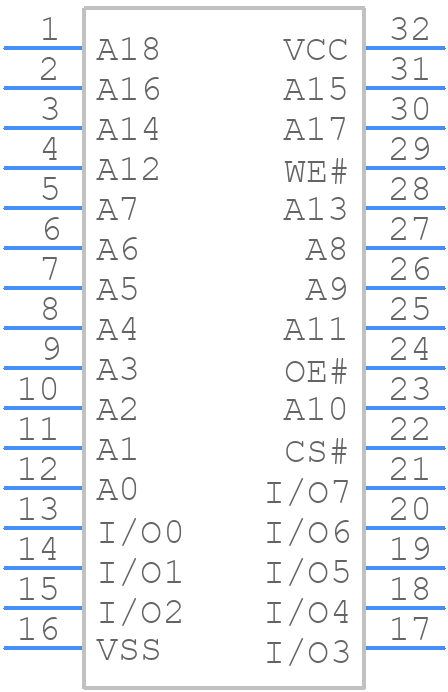

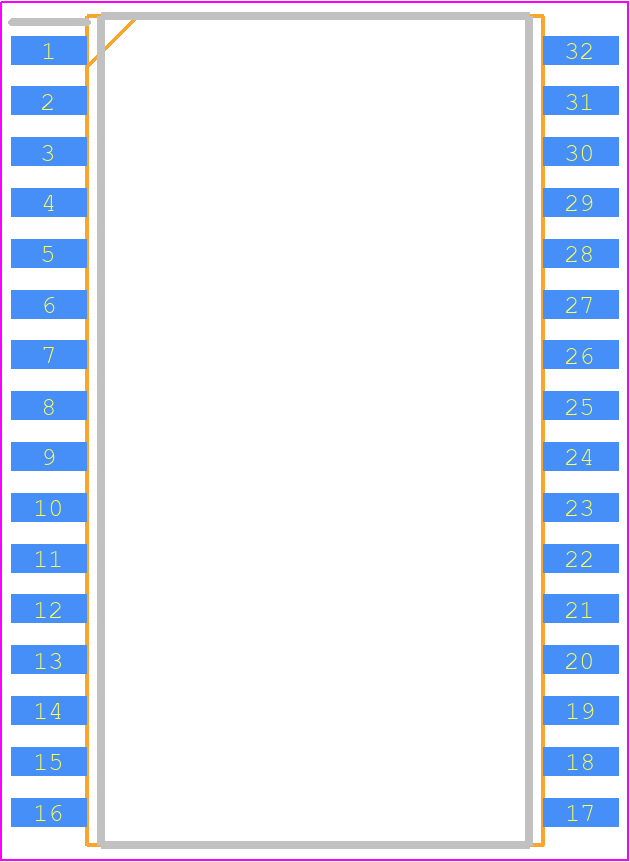

Use the download button to access the R1LP0408CSP-5SC#B0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R1LP0,
or try a keyword search, such as SRAMs
