R1S-1224 - RECOM Power

R1S-1224 Details

• Manufacturer Part Number:

  R1S-1224

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

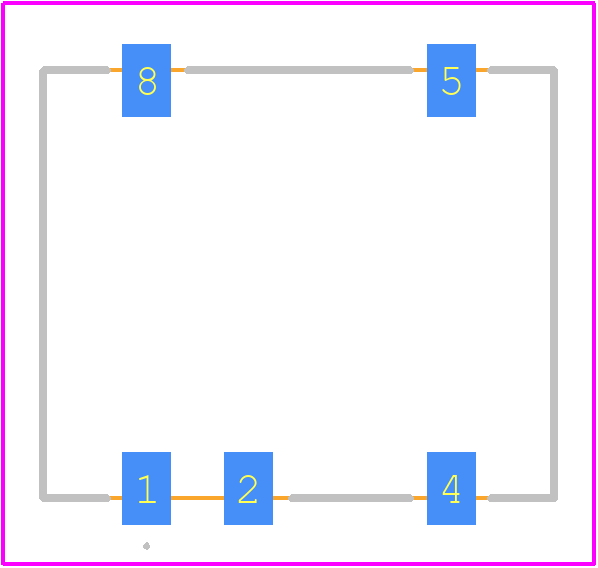

• Part Package Code:

  MODULE

• Package Description:

  DMA, MODULE,5LEAD,.45

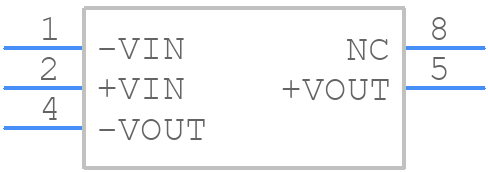

• Pin Count:

  8/5

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• Manufacturer:

  RECOM Power GmbH

• YTEOL:

  5.9

• Analog IC - Other Type:

  DC-DC UNREGULATED POWER SUPPLY MODULE

• Input Voltage-Max:

  13.2 V

• Input Voltage-Min:

  10.8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XDMA-G5

• JESD-609 Code:

  e1

• Length:

  12.75 mm

• Load Regulation-Max:

  10%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.042 A

• Output Voltage-Max:

  25.2 V

• Output Voltage-Min:

  22.8 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,5LEAD,.45

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  255

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  7.5 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  5

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Width:

  10.7 mm
