RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the R1S-1512 is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure the module is securely attached to the PCB. Additionally, the module's pins should be soldered securely to prevent vibration-induced fatigue.
The R1S-1512 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, follow the recommended layout and assembly guidelines, and use the module in accordance with the datasheet specifications. Additionally, consult with RECOM Power Inc or a certified test house for specific certification requirements.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for the input voltage range. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ensure stable operation.
Yes, the R1S-1512 can be used in a redundant or parallel configuration to achieve higher power ratings or improve system reliability. However, it's essential to follow RECOM's guidelines for parallel operation and ensure that the modules are properly synchronized and monitored to prevent damage or instability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R1S-1512 Overview

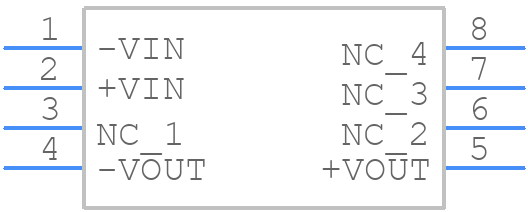

Use the download button to access the R1S-1512 schematic symbol, PCB footprint, and 3D model.
