R2045S-E2-FE - Nisshinbo

Description: Real Time Clock 4-wire Real Time Clock Module

Download R2045S-E2-FE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this R2045S-E2-FE model

Email notifications will be applied after download.

Send part feedback

Symbol

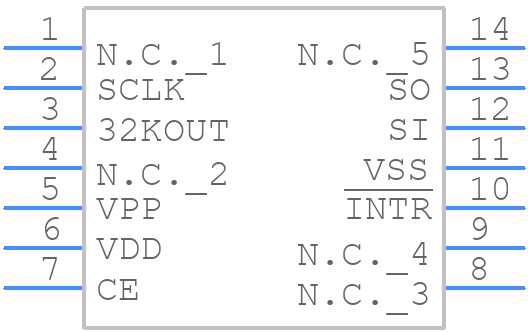

R2045S-E2-FE - Nisshinbo - PCB symbol

PCB Footprints

R2045S-E2-FE - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - SOP14_2024-1

3D Models

R2045S-E2-FE - Nisshinbo - 3D model - Small Outline Packages - SOP14_2024-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for R2045S-E2-FE
Part Number R2045S-E2-FE
Manufacturer Nisshinbo
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP14_2024-1
Released Date May 21, 2026
Last Modified Date May 21, 2026 2:23 AM UTC
Pinout / Pin List Click Here (Member Only)

R2045S-E2-FE Details

Manufacturer Part Number:
R2045S-E2-FE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Nisshinbo Micro Devices
YTEOL:
8
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Terminal Finish:
Tin (Sn)
uPs/uCs/Peripheral ICs Type:
TIMER, REAL TIME CLOCK

Trust Checks

Community Provided

System Verified

Community Approved

R2045S-E2-FE Overview

Use the download button to access the R2045S-E2-FE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R2045, or try a keyword search, such as Timers or RTCs
