A recommended PCB layout for the R2221T-E2-F includes a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 100nF) close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to dissipate heat efficiently, and thermal interface material (e.g., thermal tape or thermal grease) should be used to fill any gaps between the device and the heat sink.
Although the datasheet specifies a maximum operating voltage of 2.5V, it's recommended to derate the voltage to 2.3V to ensure long-term reliability and to account for voltage fluctuations.
To prevent electrostatic discharge (ESD) damage, it's recommended to use ESD protection devices (e.g., TVS diodes or ESD protection arrays) on the input and output pins of the R2221T-E2-F. Additionally, handling the device with ESD-safe equipment and following proper ESD handling procedures is essential.
To prevent damage and ensure long-term reliability, it's recommended to store the R2221T-E2-F in a dry, cool place (e.g., 20°C to 30°C, 60% RH or less) away from direct sunlight and moisture. The device should be stored in its original packaging or in a sealed bag with desiccant.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R2221T-E2-F Overview

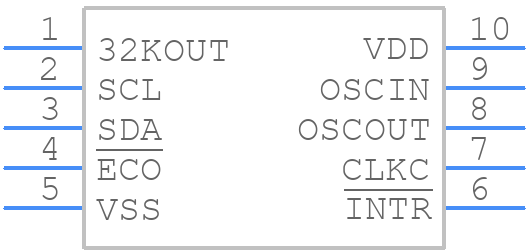

Use the download button to access the R2221T-E2-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R2221,
or try a keyword search, such as Timers or RTCs
