R2A20132SP#W0 footprint, schematic symbol and 3D model by Renesas Electronics

R2A20132SP#W0 - Renesas Electronics

Description: The R2A20132SP controls two boost converters to provide a active power factor correction. The R2A20132SP is based on R2A20112 and additional functions are Slave drop function at light load, Off time control, Brownout, Double OVP, Dynamic under voltage protection, and ZCD signal open detection. Also the reference voltage tolerance is improved. The R2A20132SP adopts critical conduction mode for power factor correction and realizes high efficiency and a low switching noise by zero current switching. Interleavi

Download R2A20132SP#W0 Model

Schematic
symbols

PCB
footprints

3D
models

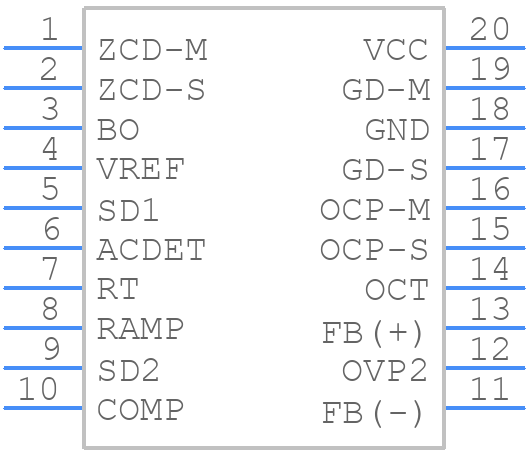

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R2A20132SP#W0
Part Number R2A20132SP#W0
Manufacturer Renesas Electronics
Pin Count 20
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PRSP0020DD-B
Released Date Dec 4, 2019
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

R2A20132SP#W0 Details

Manufacturer Part Number:
R2A20132SP#W0
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R2A20132SP#W0 Overview

Use the download button to access the R2A20132SP#W0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R2A20, or try a keyword search, such as Switching Regulator or Controllers
