R2A20134ASP#W5 - Renesas Electronics

R2A20134ASP#W5 Details

• Manufacturer Part Number:

  R2A20134ASP#W5

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOP

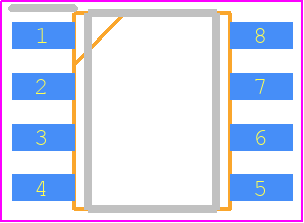

• Package Description:

  SOP-8

• Pin Count:

  8

• Manufacturer Package Code:

  PRSP0008DJ

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.93 mm

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Seated Height-Max:

  1.73 mm

• Supply Current-Max:

  3.3 mA

• Supply Voltage-Max:

  24 V

• Supply Voltage-Min:

  9.2 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.94 mm

• fmax-Min:

  0.053 MHz
