Description:The R2A20152 is an integrated circuit semiconductor of CMOS structure with 2 channels of built in D/A converters with output buffer operational amplifiers. It is the characteristic improvement version of M62332. The input interface is I²C Bus serial data method, and connects with a microcomputer with minimum wiring. It conforms FAST-MODE of I²C BUS Specifications. The output circuit is composed of buffer operational amplifier with sync and source drive capacity of 1. 0 mA or more, and it operates in the who
Renesas provides a recommended PCB layout guide in their application note (AP6111) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The R2A20152NS#W0 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Renesas recommends using thermal vias and a heat sink if necessary, depending on the application's power dissipation requirements.
Renesas recommends a specific power-up sequence to ensure proper operation: first, power up the VCC pin, then the VDD pin, and finally the AVCC pin. This sequence helps to prevent latch-up and ensures that the internal voltage regulators are properly enabled.
The internal voltage regulators can be configured using the VRS and VBP pins. The VRS pin sets the output voltage of the internal regulator, and the VBP pin sets the voltage monitoring threshold. Renesas provides a detailed configuration guide in their datasheet and application notes.
The maximum operating frequency for the R2A20152NS#W0 is 200 MHz, but this can be affected by factors such as clock signal quality, PCB layout, and power supply noise. Renesas recommends following their guidelines for clock signal routing and power supply decoupling to ensure reliable operation at high frequencies.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R2A20152NS#W0 Overview

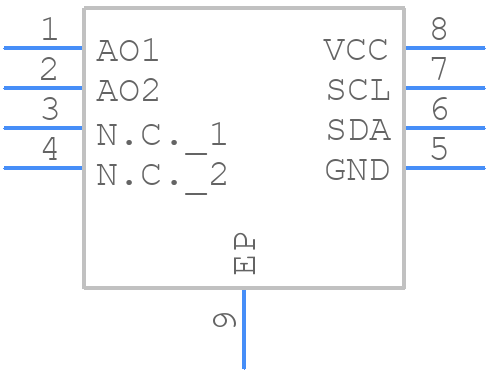

Use the download button to access the R2A20152NS#W0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R2A20,
or try a keyword search, such as Digital to Analog Converters
