R3200L052B-E2 footprint, schematic symbol and 3D model by Ricoh

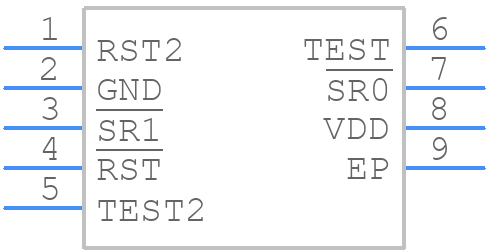

Symbol

PCB Footprints

3D Models

R3200L052B-E2 Details

Ricoh recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
To ensure stability, use a minimum output capacitance of 10uF, and an ESR (Equivalent Series Resistance) of 1Ω or less. Additionally, place the output capacitor close to the output pin and use a low-ESR capacitor.
The maximum allowed input voltage ripple is 1Vp-p. Exceeding this value may affect the regulator's performance and stability.
The R3200L052B-E2 is rated for operation up to 125°C. However, the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper thermal design and heat dissipation to prevent overheating.
Power dissipation (PD) can be calculated using the formula: PD = (Vin - Vout) x Iout. Ensure the calculated PD does not exceed the maximum rating of 1.5W.

Expert Contribution

System Verified

Community Approved

Use the download button to access the R3200L052B-E2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R3200, or try a keyword search, such as Timers or RTCs

If you searched for R3200L052B-E2, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	R3200L052B-E2 Nisshinbo Micro Devices Voltage Supervisor/Reset IC, Fixed, 1 Channel, PDSO8
For a full list of alternate parts for R3200L052B-E2, check out Findchips.com
