The operating temperature range of the R40N-3011-85-1012 relay is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the relay's performance and lifespan may be affected if operated outside this range for extended periods.
While the datasheet doesn't explicitly mention vibration resistance, Relpol SA's relays are generally designed to withstand moderate vibrations. However, it's recommended to consult with the manufacturer or a qualified engineer to determine the relay's suitability for high-vibration applications.
The datasheet provides general guidelines for PCB layout and spacing, but it's essential to follow best practices for relay placement, such as keeping the relay away from heat sources, using a sufficient creepage distance, and ensuring proper clearance from other components. Consult with a qualified engineer or the manufacturer for specific guidance.
The R40N-3011-85-1012 relay is not explicitly certified for safety-critical applications. If you're designing a system that requires safety certifications (e.g., IEC 61508 or UL 508), you should consult with the manufacturer and relevant authorities to determine the relay's suitability and any necessary additional testing or certification.
The datasheet doesn't provide a specific lifespan for the R40N-3011-85-1012 relay. However, the relay's lifespan is typically dependent on factors such as operating conditions, switching frequency, and environmental factors. A general estimate for a relay of this type is around 100,000 to 500,000 operations, but this can vary significantly. Consult with the manufacturer or a qualified engineer for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R40N-3011-85-1012 Overview

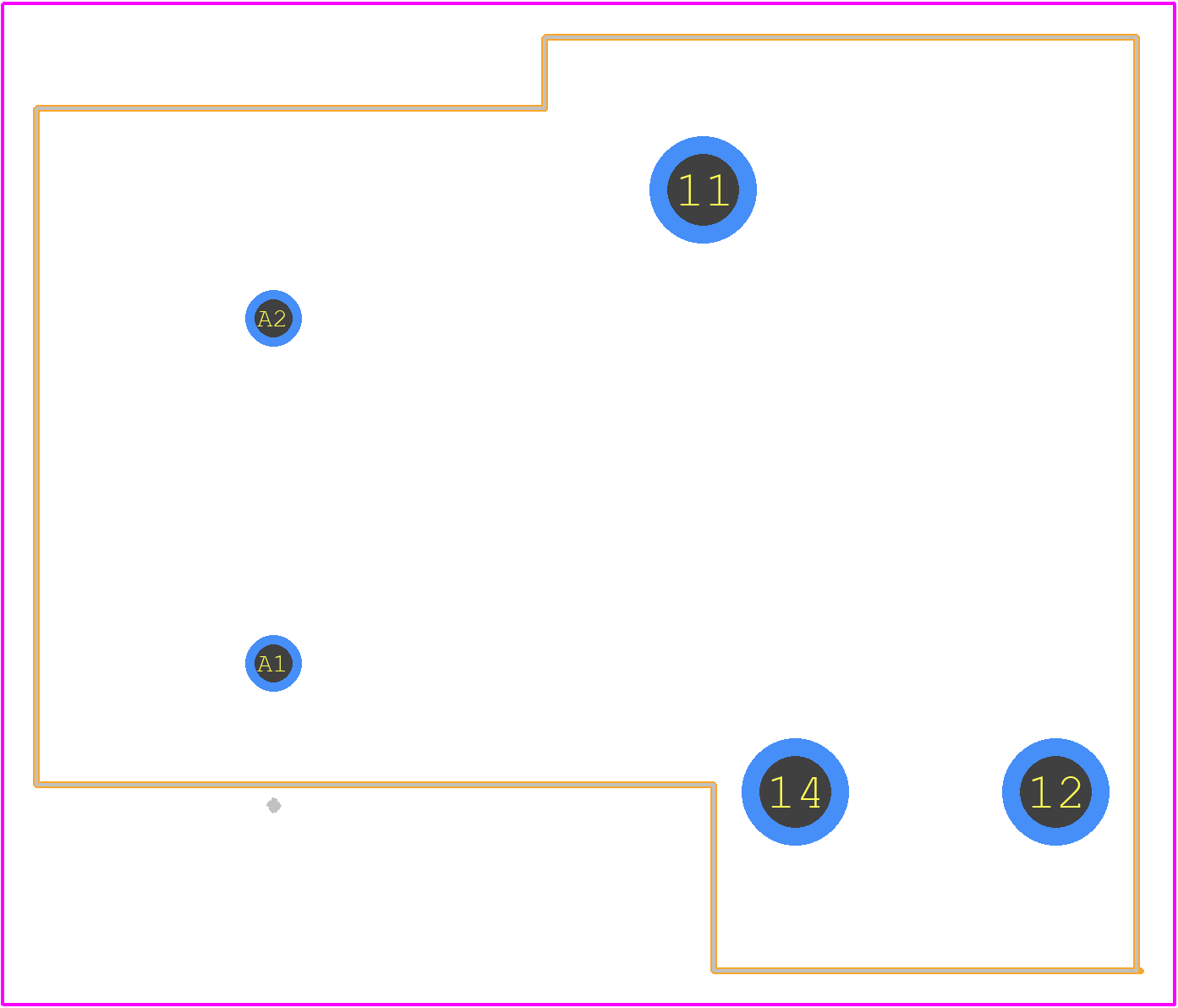

Use the download button to access the R40N-3011-85-1012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R40N-,
or try a keyword search, such as Power/Signal Relays
