Description:The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus
The recommended oscillator crystal frequency for the R5F100FAAFP#10 is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
To configure the flash memory for optimal performance and endurance, refer to the Renesas Flash Memory Programming Guide and follow the recommended programming algorithms and timing parameters. Additionally, ensure that the flash memory is erased and programmed according to the datasheet specifications.
The built-in ADC of the R5F100FAAFP#10 has a 10-bit resolution and may have limitations in terms of accuracy and noise tolerance. To improve its accuracy, use external filters to reduce noise, ensure proper grounding and shielding, and calibrate the ADC according to the datasheet recommendations. Additionally, consider using an external ADC with higher resolution and accuracy if required.
To implement a watchdog timer (WDT) in your application, refer to the Renesas Watchdog Timer Application Note and follow the recommended configuration and programming procedures. Ensure that the WDT is properly initialized, and the timeout period is set according to your application's requirements.
The R5F100FAAFP#10 offers several power-saving modes, including Sleep, Stop, and Hibernate modes. To use these modes, refer to the datasheet and follow the recommended procedures for entering and exiting each mode. Additionally, ensure that the necessary peripherals are properly configured and disabled to minimize power consumption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F100FAAFP#10 Overview

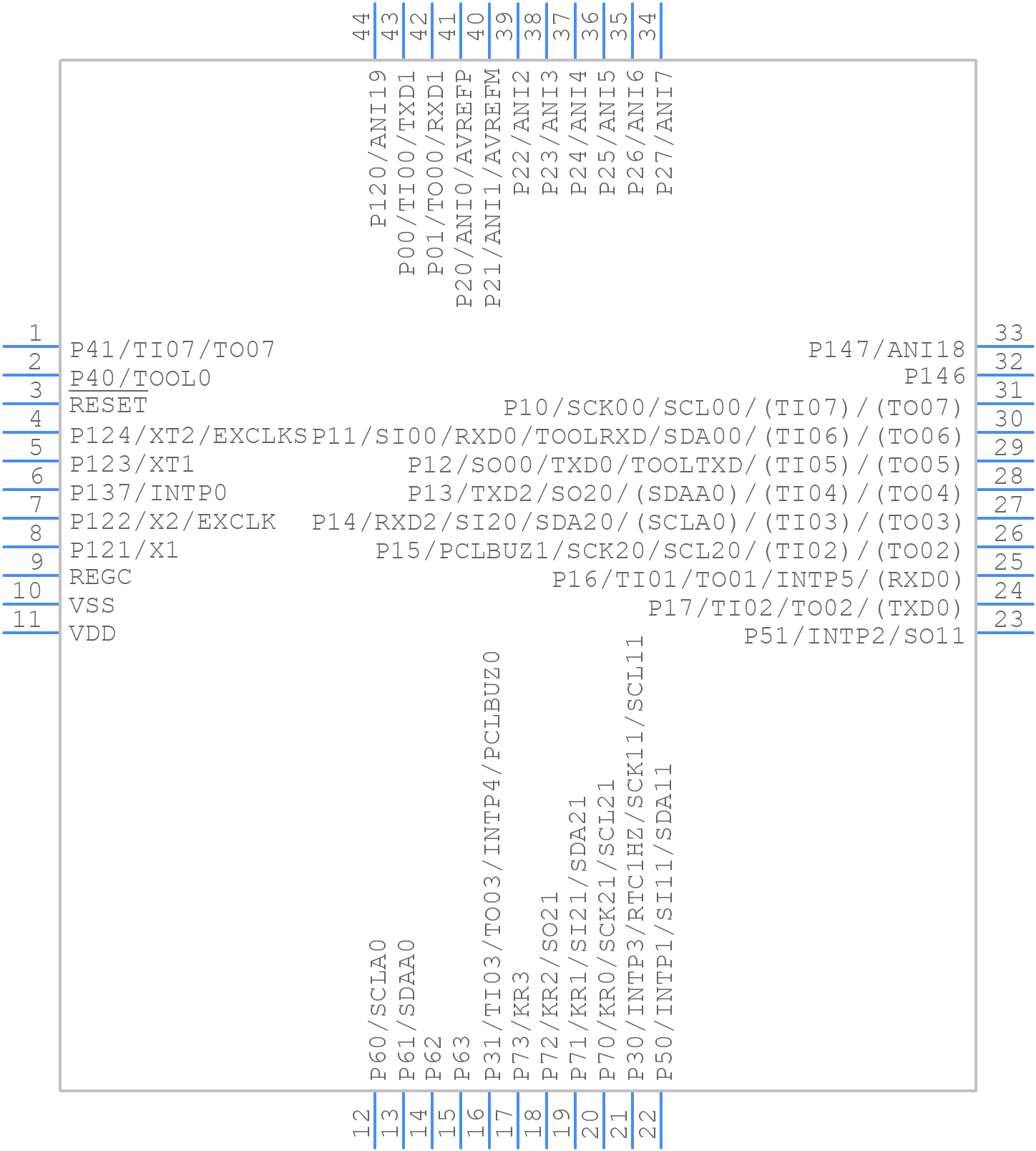

Use the download button to access the R5F100FAAFP#10 schematic symbol, PCB footprint, and 3D model.
