R5F100FCAFP#10 - Renesas Electronics

Description: The RL78/G13 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 230 nA) and a high performance of 43.2 DMIPS (32 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). These microcontrollers can be used in a wide variety of applications from home and consumer appliances to indus

Download R5F100FCAFP#10 Model

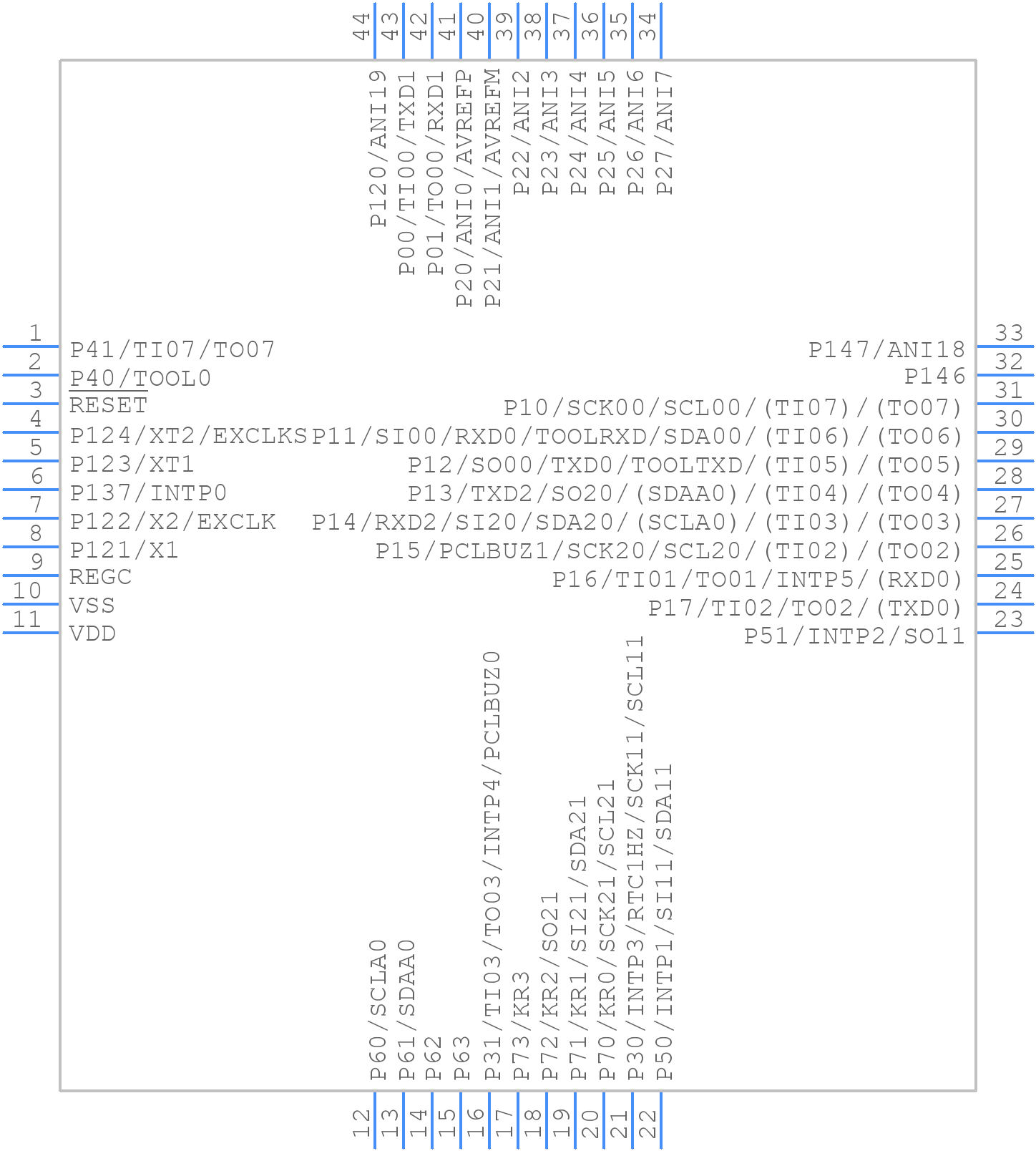

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F100FCAFP#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0044GC-A
click to zoom
3D Models
R5F100FCAFP#10 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0044GC-A
click to zoom

R5F100FCAFP#10 Details

  • Manufacturer Part Number:

    R5F100FCAFP#10

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Pin Count:

    44

  • Manufacturer Package Code:

    PLQP0044GC

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G44

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    7

  • Number of I/O Lines:

    40

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    44

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
