R5F100PFAFA#70 - Renesas Electronics

R5F100PFAFA#70 Details

• Manufacturer Part Number:

  R5F100PFAFA#70

• Part Life Cycle Code:

  Active

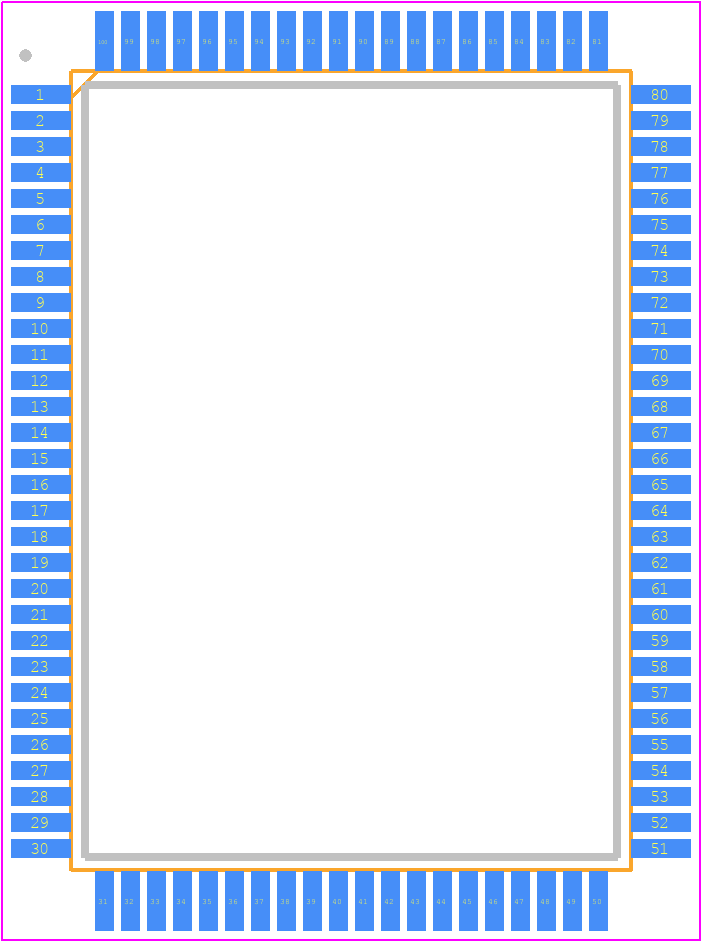

• Package Description:

  LQFP-100

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• Has ADC:

  YES

• Additional Feature:

  IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  RL78

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PQFP-G100

• Length:

  20 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  4

• Number of External Interrupts:

  13

• Number of I/O Lines:

  92

• Number of Serial I/Os:

  4

• Number of Terminals:

  100

• Number of Timers:

  13

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Equivalence Code:

  QFP100,.63X.87

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, LOW PROFILE

• RAM (bytes):

  8192

• ROM (words):

  98304

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  32 MHz

• Supply Current-Max:

  8.5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
