R5F10267ASP#V5 - Renesas Electronics

Description: RL78/G12 microcontrollers balance the industry's lowest level of consumption current (CPU: 63 μA/MHz, standby (STOP): 230 nA) and a high performance of32.4 DMIPS (24 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a 20 to 30-pin compact package lineup, these microcontrollers are perfect for sub-microcontrollers of small app

Download R5F10267ASP#V5 Model

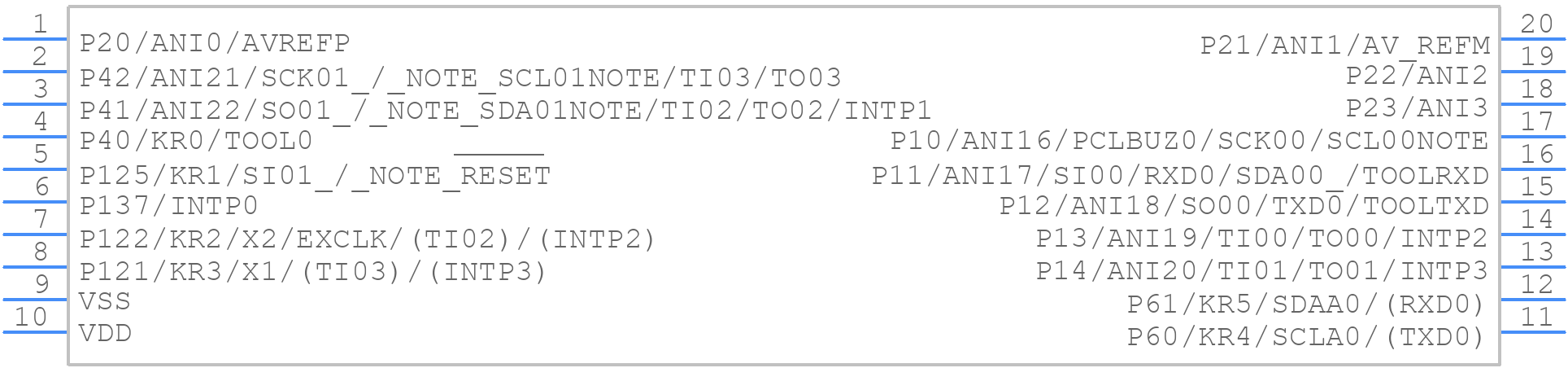

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

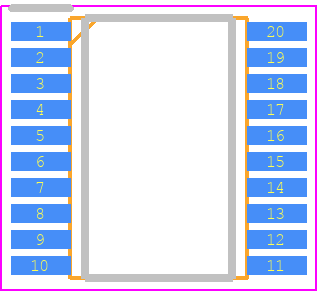

R5F10267ASP#V5 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0020JB-A
click to zoom
3D Models
R5F10267ASP#V5 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0020JB-A
click to zoom

R5F10267ASP#V5 Details

  • Manufacturer Part Number:

    R5F10267ASP#V5

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LSSOP

  • Package Description:

    LSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PLSP0020JB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2016-03-31

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    18

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    20

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • RAM (bytes):

    512

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.45 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F10267ASP#V5 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for R5F10267ASP#V5 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • The R5F10267ASP#V5 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control registers. The WDT can be set to reset the device or generate an interrupt when a timeout occurs. Refer to the datasheet and the device's user manual for detailed instructions on how to implement the watchdog timer.
  • The maximum clock frequency supported by R5F10267ASP#V5 is 32 MHz, as specified in the datasheet. However, the device can operate at lower clock frequencies, and the clock frequency can be adjusted using the clock control registers.
  • The R5F10267ASP#V5 has a 10-bit analog-to-digital converter (ADC) that can be used to convert analog signals to digital values. To use the ADC, you need to configure the ADC control registers, select the analog input channel, and start the ADC conversion. The ADC result can be read from the ADC data registers. Refer to the datasheet and the device's user manual for detailed instructions on how to use the ADC.
  • The power consumption of R5F10267ASP#V5 depends on the operating frequency, voltage, and mode of operation. According to the datasheet, the typical power consumption is around 15 mA at 32 MHz and 3.3 V. However, the actual power consumption may vary depending on the specific application and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F10267ASP#V5 Overview

Use the download button to access the R5F10267ASP#V5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F10, or try a keyword search, such as Microcontrollers
