R5F10268ASM#55 - Renesas Electronics

Description: RL78/G12 microcontrollers balance the industry's lowest level of consumption current (CPU: 63 μA/MHz, standby (STOP): 230 nA) and a high performance of 32.4 DMIPS (24 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a 20 to 30-pin compact package lineup, these microcontrollers are perfect for sub-microcontrollers of small ap

Download R5F10268ASM#55 Model

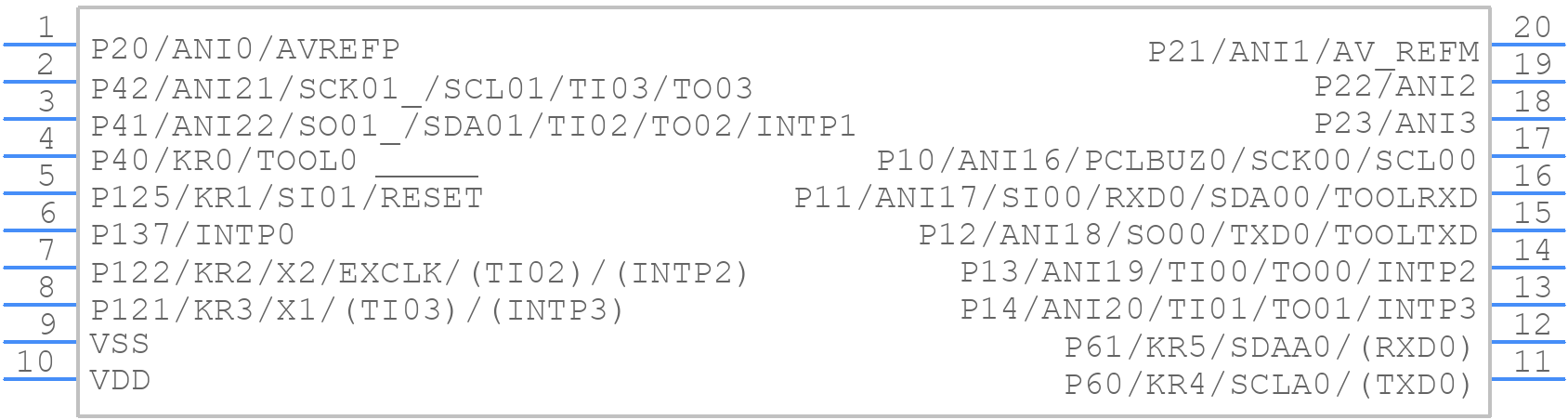

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F10268ASM#55 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PTSP0020JI-A-2021
click to zoom
3D Models
R5F10268ASM#55 - Renesas Electronics  - 3D model - Small Outline Packages - PTSP0020JI-A-2021
click to zoom

R5F10268ASM#55 Details

  • Manufacturer Part Number:

    R5F10268ASM#55

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PTSP0020JI

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-07-31

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    18

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    20

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • RAM (bytes):

    768

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
