Description:RL78/G12 microcontrollers balance the industry's lowest level of consumption current (CPU: 63 μA/MHz, standby (STOP): 230 nA) and a high performance of32.4 DMIPS (24 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a 20 to 30-pin compact package lineup, these microcontrollers are perfect for sub-microcontrollers of small app
The recommended oscillator crystal frequency for the R5F10268GSP#V0 is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
To configure the flash memory for optimal performance and endurance, refer to the Renesas Flash Memory Programming Guide and follow the recommended programming and erase procedures. Additionally, consider using the Renesas Flash Development Toolkit to optimize flash memory usage.
The power consumption characteristics of the R5F10268GSP#V0 vary depending on the operating frequency, voltage, and mode. Refer to the datasheet for typical current consumption values in different modes, such as active, sleep, and standby. Additionally, consider using the Renesas Power Consumption Calculator tool to estimate power consumption for specific use cases.
To implement secure boot and firmware updates for the R5F10268GSP#V0, refer to the Renesas Secure Boot and Firmware Update Application Note. This document provides guidance on using the microcontroller's built-in security features, such as the Secure Boot Mode and the Firmware Update Mode, to ensure secure and reliable firmware updates.
The R5F10268GSP#V0 has a maximum operating temperature range of -40°C to +85°C. To ensure reliable operation, consider thermal management techniques such as heat sinking, thermal interface materials, and airflow management. Refer to the datasheet for thermal characteristics and guidelines for thermal design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F10268GSP#V0 Overview

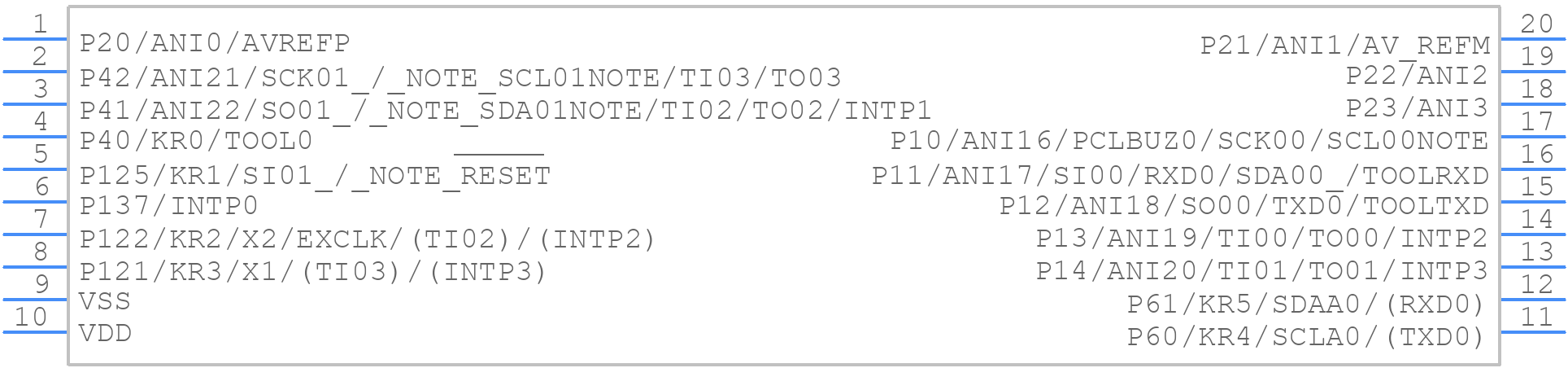

Use the download button to access the R5F10268GSP#V0 schematic symbol, PCB footprint, and 3D model.
