R5F102AADSP#V0 - Renesas Electronics

Description: RL78/G12 microcontrollers balance the industry's lowest level of consumption current (CPU: 63 μA/MHz, standby (STOP): 230 nA) and a high performance of32.4 DMIPS (24 MHz). They have an on-chip oscillator, data flash, A/D converter, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a 20 to 30-pin compact package lineup, these microcontrollers are perfect for sub-microcontrollers of small app

Download R5F102AADSP#V0 Model

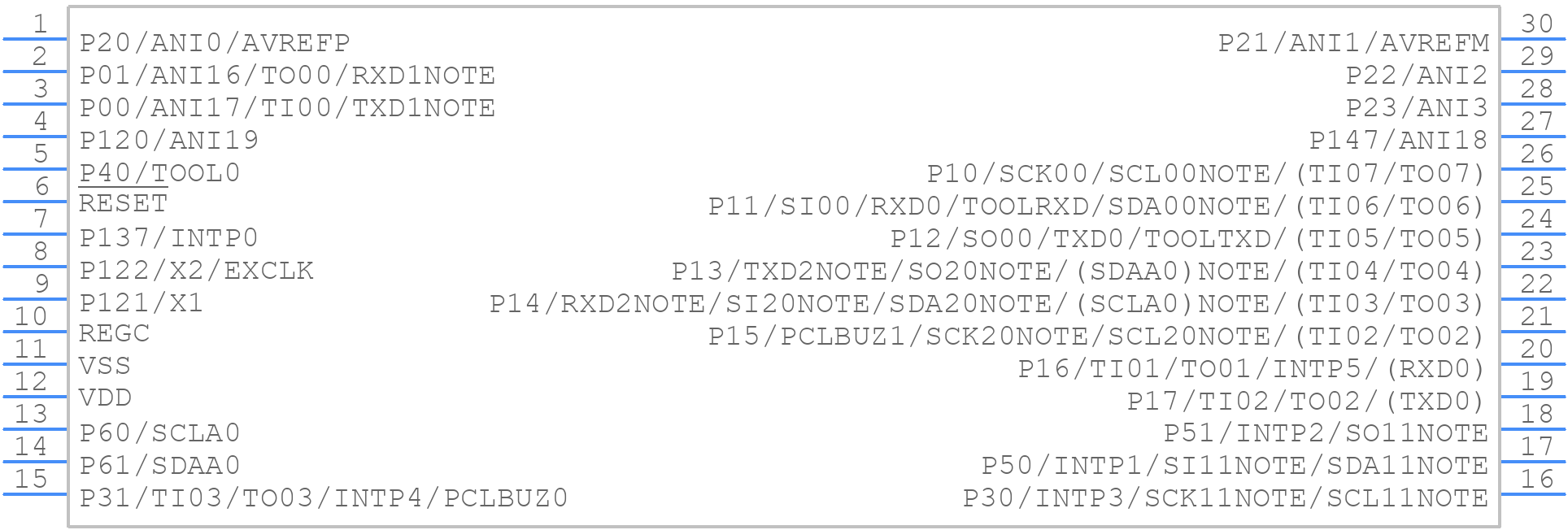

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F102AADSP#V0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0030JB-B
click to zoom
3D Models
R5F102AADSP#V0 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0030JB-B
click to zoom

R5F102AADSP#V0 Details

  • Manufacturer Part Number:

    R5F102AADSP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LSSOP

  • Package Description:

    LSSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    30

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP30,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    16384

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F102AADSP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • The clock settings can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum operating frequency of the R5F102AADSP#V0 is 32 MHz. However, the actual operating frequency may be limited by the system clock source and the clock divider settings.
  • The DMA controller can be used to transfer data between peripherals and memory without CPU intervention. The DMA controller is configured using the DMA Control Register (DMACR) and the DMA Transfer Register (DMATR).
  • The watchdog timer is used to detect and recover from system failures or hangs. It can be configured to generate a reset signal if the system fails to refresh the watchdog timer within a specified time period.
