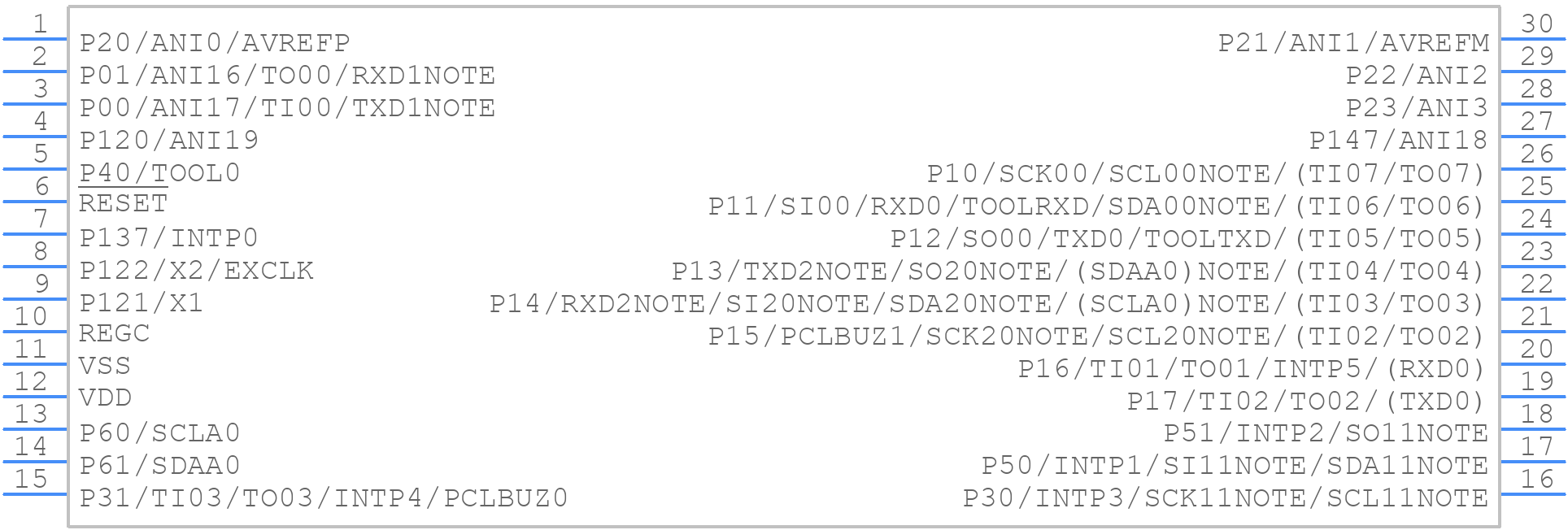

R5F103A7ASP - Renesas Electronics

R5F103A7ASP Details

• Manufacturer Part Number:

  R5F103A7ASP

• Part Life Cycle Code:

  Active

• Part Package Code:

  SSOP

• Package Description:

  7.62 MM, PLASTIC, SSOP-30

• Pin Count:

  30

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7.32

• Has ADC:

  YES

• Additional Feature:

  SEATED HGT-NOM; ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 8 MHZ

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  RL78

• Clock Frequency-Max:

  24 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  R-PDSO-G30

• Length:

  9.85 mm

• Number of I/O Lines:

  26

• Number of Terminals:

  30

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• RAM (bytes):

  512

• ROM (words):

  4096

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.4 mm

• Speed:

  24 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
