Part Image

R5F107ACMSP#V0 - Renesas Electronics

Description: RL78/I1A microcontrollers realize PWM output of a minimum 0.98 ns resolution using 64 MHz timer operation and dithering function, supporting fine dimming and toning. Through cooperation between the PWM timer and comparator/external interrupt input, PFC control and protection functions can be realized by hardware. Low consumption current of 3.3 mA during LED and power supply control and 0.23 μA when waiting for UART (DALI) communication allows the power consumption of the system to be reduced. DALI/DMX512 li

Download R5F107ACMSP#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

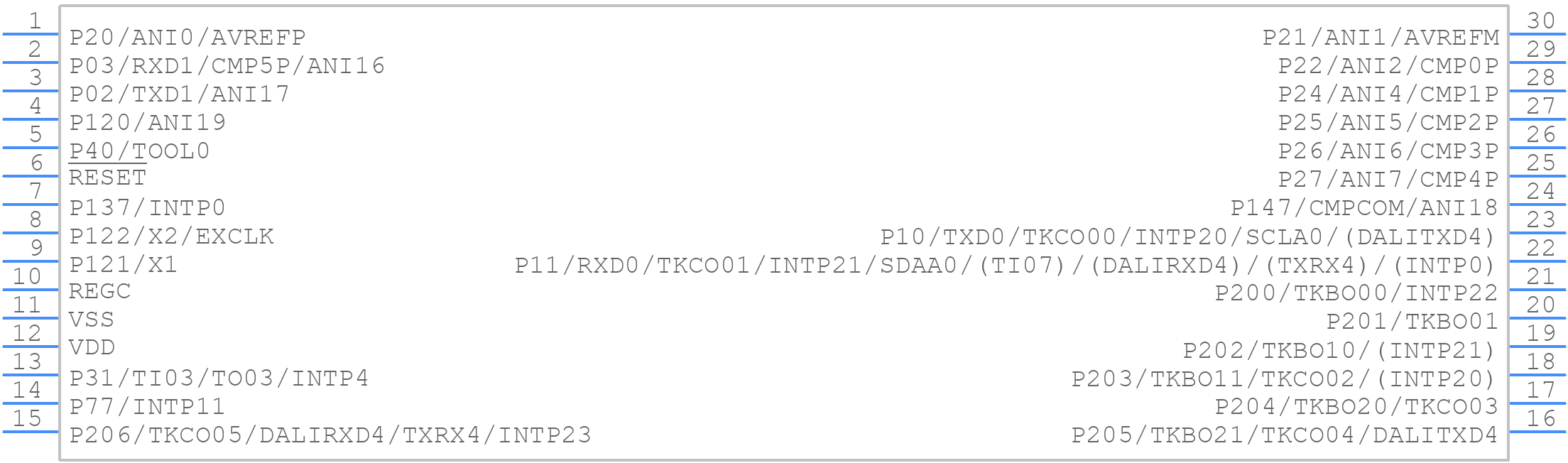

R5F107ACMSP#V0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F107ACMSP#V0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0030JB-B-
click to zoom
3D Models
R5F107ACMSP#V0 - Renesas Electronics - 3D model - Small Outline Packages - PLSP0030JB-B-
click to zoom

R5F107ACMSP#V0 Details

  • Manufacturer Part Number:

    R5F107ACMSP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    30

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F107ACMSP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Frequency Register (CFR). The CCR sets the clock source and mode, while the CFR sets the clock frequency. Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F107ACMSP#V0 is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F107ACMSP#V0 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCSR). The WDT can be set to generate a reset signal if the timer expires, and can be fed by the internal clock or an external clock signal.
  • The maximum current consumption of the R5F107ACMSP#V0 depends on the operating frequency and voltage. According to the datasheet, the maximum current consumption is approximately 350mA at 1.8V and 100MHz operating frequency. However, this value can vary depending on the specific application and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F107ACMSP#V0 Overview

Use the download button to access the R5F107ACMSP#V0 schematic symbol, PCB footprint, and 3D model.
