R5F107ACMSP#X0 - Renesas Electronics

Description: RL78/I1A microcontrollers realize PWM output of a minimum 0.98 ns resolution using 64 MHz timer operation and dithering function, supporting fine dimming and toning. Through cooperation between the PWM timer and comparator/external interrupt input, PFC control and protection functions can be realized by hardware. Low consumption current of 3.3 mA during LED and power supply control and 0.23 μA when waiting for UART (DALI) communication allows the power consumption of the system to be reduced. DALI/DMX512 li

Download R5F107ACMSP#X0 Model

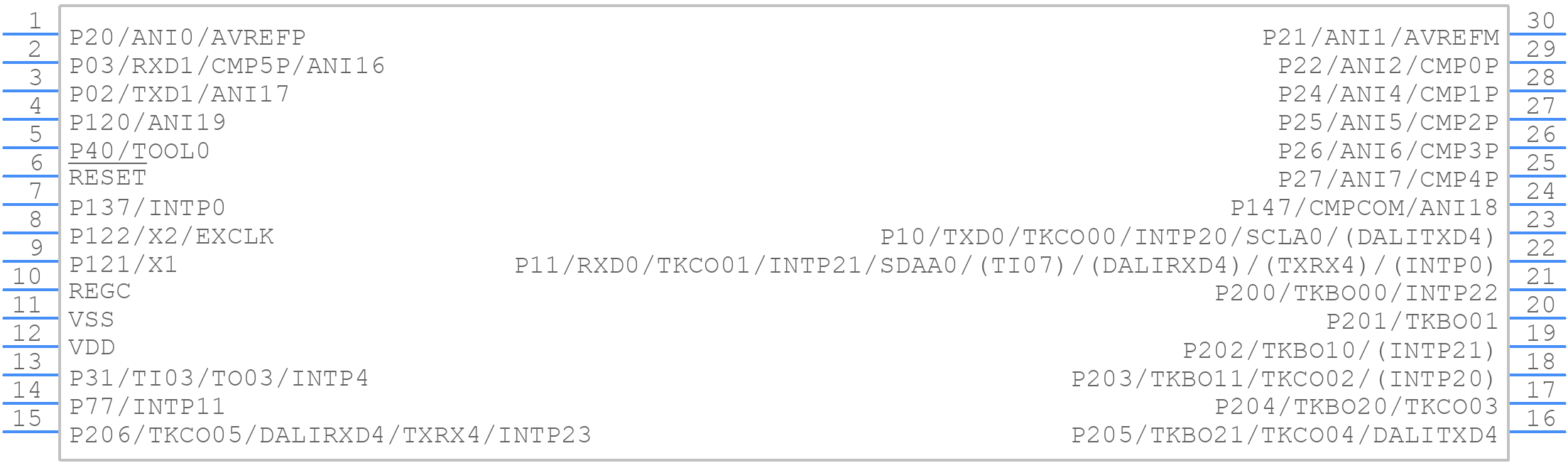

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F107ACMSP#X0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0030JB-B-
click to zoom
3D Models
R5F107ACMSP#X0 - Renesas Electronics  - 3D model - Small Outline Packages - PLSP0030JB-B-
click to zoom

R5F107ACMSP#X0 Details

  • Manufacturer Part Number:

    R5F107ACMSP#X0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    30

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F107ACMSP#X0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings and clock configuration options.
  • The maximum operating frequency of the R5F107ACMSP#X0 is 32 MHz, but it can be adjusted using the clock control registers to operate at lower frequencies if needed.
  • The built-in ADC can be used by configuring the ADC control registers, selecting the analog input channel, and initiating a conversion. The ADC result can be read from the ADC data register. Refer to the user manual for specific register settings and ADC configuration options.
  • The VBAT pin is used to connect a battery or a power source that provides power to the internal real-time clock (RTC) and backup registers when the main power supply (VCC) is turned off.
