R5F109ACKSP#H0 - Renesas Electronics

Description: RL78/F12 microcontrollers are available in a 20 to 64-pin, 8 to 64 KB flash memory lineup, and realize the industry's lowest level of consumption current. They have a built-in LIN module as an automotive interface. With various built-in functions for realizing functional safety including flash memory CRC calculation, illegal memory access detection, RAM guard, A/D converter testing, and SFR guard, a highly reliable system can be built, so these microcontrollers can be used for industrial applications and of

Download R5F109ACKSP#H0 Model

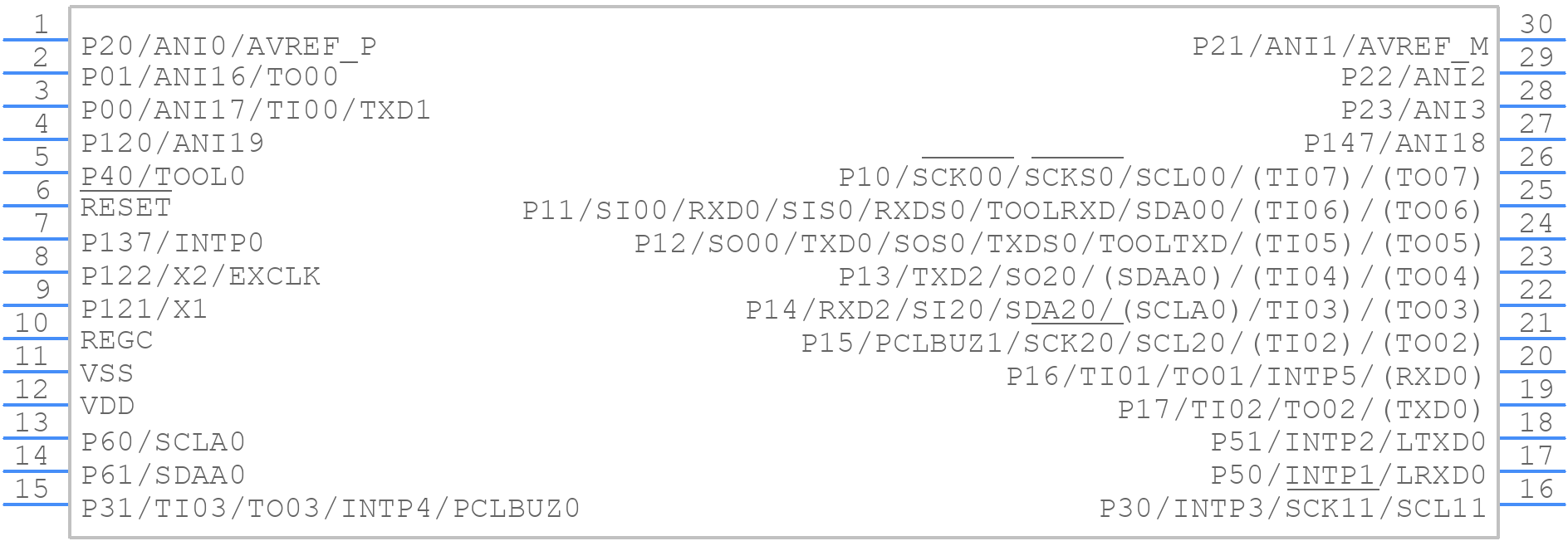

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F109ACKSP#H0 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 30-PIN PLASTIC SSOP (7.62 mm (300))
click to zoom
3D Models
R5F109ACKSP#H0 - Renesas Electronics  - 3D model - Small Outline Packages - 30-PIN PLASTIC SSOP (7.62 mm (300))
click to zoom

R5F109ACKSP#H0 Details

  • Manufacturer Part Number:

    R5F109ACKSP#H0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LSSOP

  • Package Description:

    SSOP-30

  • Pin Count:

    30

  • Manufacturer Package Code:

    PLSP0030JB

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.85 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    2

  • Number of External Interrupts:

    6

  • Number of I/O Lines:

    26

  • Number of Serial I/Os:

    5

  • Number of Terminals:

    30

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP30,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.4 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    8.2 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    6.1 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F109ACKSP#H0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VCCPLL, and then VCCIO. This ensures that the internal voltage regulators are powered up correctly and reduces the risk of latch-up or damage to the device.
  • The clock settings can be configured using the Clock Control Register (CCR) and the PLL Control Register (PLLCR). The CCR sets the clock source and frequency, while the PLLCR configures the PLL multiplier and divider. Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F109ACKSP#H0 is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F109ACKSP#H0 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The WDT can be set to timeout after a specified period, and can be reset by writing to the WTCR or by executing a specific instruction.
  • The maximum current consumption of the R5F109ACKSP#H0 depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is approximately 350 mA at 100 MHz and 3.3 V. However, this value can vary depending on the specific application and usage.
